Where can I buy aluminum titanium ultra large forged bars and pipes?

Why is it difficult to buy ultra-large forged pipes and bars?

Because large diameter thick-walled seamless pipes are difficult to produce and the manufacturing process is complex:.

1, piercing process: the first step in manufacturing seamless pipe is to pierce the solid cylindrical billet, this process requires high-precision equipment and technology to ensure that the internal and external surfaces of the pierced billet pipe are uniform and smooth.

2,Heat treatment: Large diameter thick wall seamless pipes need to go through several heat treatment processes, such as normalising, quenching and tempering, in order to improve the mechanical properties and internal organisation of the material during the production process.

3,Precision Rolling: The rolling process of seamless pipess requires highly precise control, especially for large diameter and thick walled pipes, the rolling process needs to ensure uniform wall thickness to avoid internal stress and deformation.

Similarly, the production process of high-end die forging parts is also very complex:

1, precision mould manufacturing: the production of high-end drop-forged parts requires high-precision moulds, mould manufacturing itself is a complex process, requiring a high level of design and processing technology.

2, heat treatment process: the control of the heat treatment process is crucial to obtain the desired mechanical properties and microstructure. The heat treatment process requires precise control of temperature, time and cooling rate.

3, precision forging: the forging process needs to be carried out at high temperature and pressure, requiring precise temperature control and distribution of forging force to ensure the dimensional accuracy and internal quality of the product.

Then, it is a very hard and meaningful process to break through the extrusion technical difficulties of large diameter powder/deformed high temperature alloy bars, large diameter TA15 aviation bars, large diameter TC4 seamless tubes and pipes, large diameter seamless tubes and pipes of fine grain TP347H stainless steel, and seamless tubes and pipes of high quality hard aluminium alloy.

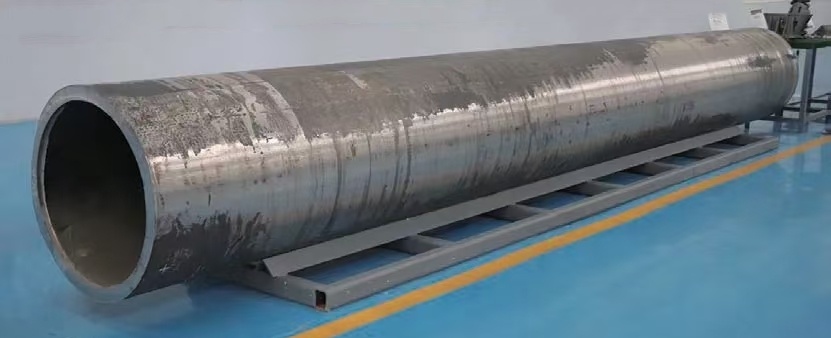

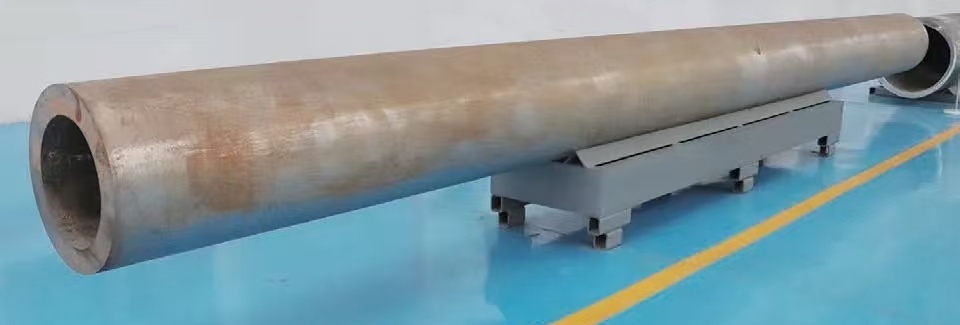

At present, we can hot extrude large-diameter thick-walled seamless tubes and large-diameter bars of various titanium alloys, high-temperature alloys, high-end aluminium alloys, high-quality stainless steel and other new materials with an outside diameter of 300 to 1500mm, a maximum length of 18m, and a wall thickness of 25 to 300mm. In terms of die forging capacity, the pad size is 4.2m×5.8m, which is suitable for the production of various types of large-size drop-forged parts;

These large-diameter pipes and bars have a wide range of future uses, such as in the aerospace field, used to produce large structural parts of aircraft, large ribbed plate, energy and chemical fields, used to produce 650 ℃ high-efficiency supercritical thermal power pipelines, nuclear power with high-quality stainless steel pipelines, marine engineering field, the production of titanium alloy high-pressure gas cylinders, and in the field of rail transport, used to manufacture high-speed rail titanium alloy bogie beams, and so on.
