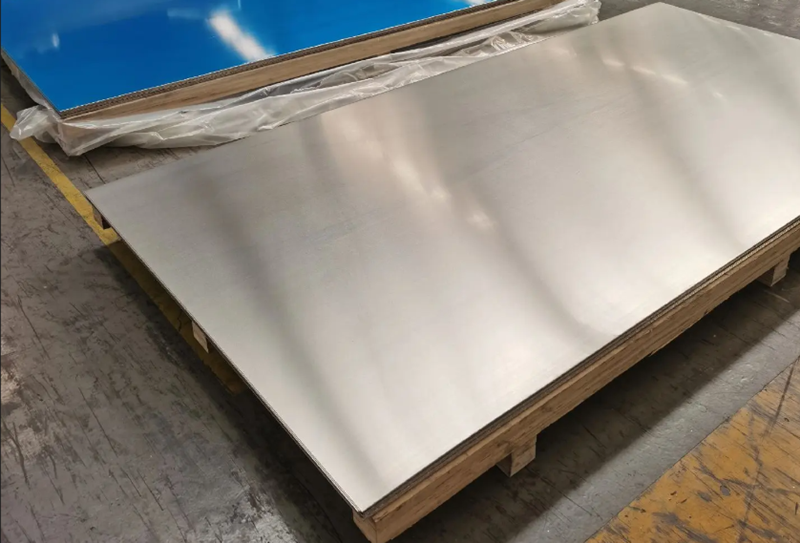

6101 T6 Aluminum Plate Sheet for Electrical Conductor

What is the similarity between 6101  T6 aluminum plate and flat bus bar?

Material Composition:

• 6101 alloy primarily consists of aluminum (Al), magnesium (Mg), and silicon (Si), with potential small amounts of other elements such as iron (Fe), copper (Cu), and manganese (Mn).

Heat Treatment State:

• T6 state means the material has undergone solution treatment followed by artificial aging, which provides high strength and hardness.

Conductivity:

• Both have excellent electrical conductivity, making them suitable for electrical conductor applications such as busbars, conductive strips, and connectors in power transmission and distribution systems.

Mechanical Properties:

• Due to the same material and heat treatment, 6101 T6 aluminum plates and bars exhibit similar mechanical properties, including tensile strength, yield strength, and elongation.

What is the differences between 6101 T6 aluminum plate and the flat bus bar?

Shape and Manufacturing Process:

• Aluminum Plate: Typically refers to flat aluminum products with uniform thickness, widely used in structural and manufacturing applications. The production process generally includes casting, rolling, and heat treatment.

• Aluminum Bar: Refers to long, strip-like aluminum products usually with a rectangular cross-section, specifically designed for electrical applications as conductive paths. The production process usually includes extrusion and heat treatment.

Comparison of Aluminum Plate and Bar in Electrical Applications

While both conductive aluminum plates and bars can be used in electrical applications, their shape and size differences make them suitable for different specific application scenarios:

• Conductive Aluminum Plate: More suitable for applications requiring large conductive areas or structural support, such as windings in large transformers, grounding plates, and distribution boards in electrical equipment.

• Conductive Aluminum Bar: Due to its strip shape and smaller cross-sectional size, it is more suitable for busbars, grounding connection strips, and conductive paths in electrical equipment.
