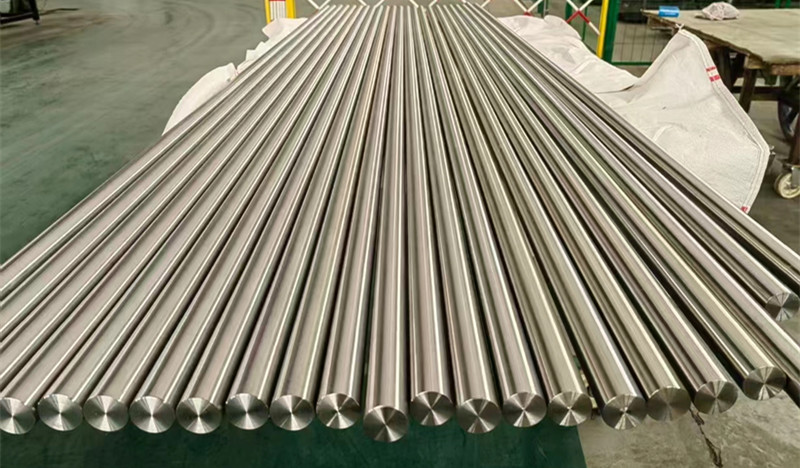

AMS4928 Titanium 6Al-4V Grade 5 Titanium bar
What is AMS4928 Titanium 6Al-4V Grade 5 Titanium bar?
AMS4928 Titanium 6Al-4V Grade 5 Titanium bar is used primarily for parts requiring corrosion resistance, stress-corrosion, and high strength 600°F (316°C), with good ductility and strength in transverse direction for.
Titanium 6Al-4V Grade 5 Round Bar: AMS 2631D, AMS 4928, AMS 4965, AMS 6930, AMS 6931, ASTM B348, AMS-T-9047, ASME SB-381,
Size of AMS4928 Titanium 6Al-4V Grade 5 Titanium bar
Titanium Grade | AMS4928 Titanium 6Al-4V Grade 5 Titanium bar | ||
Diameter | 2mm -30mm;30mm-100mm; | ||
Length | 1000mm -3000mm; 1000mm-3500mm | ||
Tolerance | H6,H7,H8,H9 | ||
Mechanical properties | Tensile strength/MPa | Yield strength at 0.2% offset /MPa | Elongation in 50.8mm or 4D %l.t. |
Up to 50.8mm | 931 | 862 | 10 |
50.8-101.6mm | 896 | 827 | 10 |
101.6-152.4mm | 896 | 827 | 10 |
Composition of AMS4928 Titanium 6Al-4V Grade 5 Titanium bar
Element | % |
Aluminum | 5.5-6.75 |
Vanadium | 3.5-4.5 |
Iron | 0.3 |
Oxygen | 0.2 |
Carbon | 0.08 |
Nitrogen | 0.05 |
Hydrogen | 0.0125 |
Yttrium | 0.005 |
Other elements each | 0.1 |
Other elements total | 0.4 |
Tinanium | Balance |
Applications of AMS4928 Titanium 6Al-4V Grade 5 Titanium bar
Used primarily for parts requiring corrosion resistance, stress-corrosion, and high strength 600°F (316°C), with good ductility and strength in transverse direction for
l Jet engine compressor blades, discs and rings
l Airframe components
l Military Hardware
l Pressure vessels
l Space craft components, including rocket engine
l Medical & surgical devices. A variant 6Al-4V ELI (Extra Low Interstitial) is often used for these applications.
l Recreational Equipment
l Auto and Boat Racing
l Other uses needing a high strength to weight ratio
