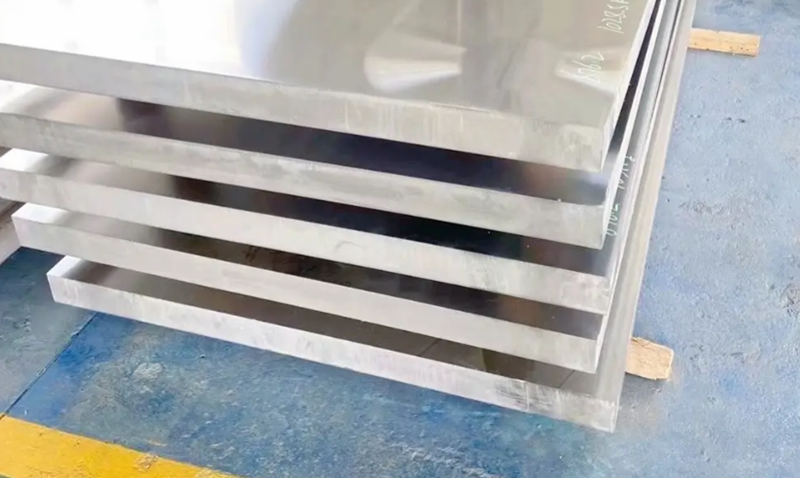

AMS4928 Titanium Ti-6Al-4V Grade 5 Sheet Plate
AMS4928 Ti-6Al-4V (Grade 5) titanium plate is an alpha-beta alloy enhanced with aluminum and vanadium. It provides an exceptional balance of mechanical strength, toughness, and ductility. Additionally, its good machinability ensures ease of welding and fabrication.
Titanium Ti6Al-4V Grade 5 plate sheet:
AMS 4911
AMS 4928
ASTM B265
ABS 5326C
AIMS 03-18-006
ASNA 3200
ABS 5125A
AIMS 03-18-001
ASNA 3304
WL 3.7164.1
LN 9297
ABS 5453A
ASNA 3307
ABS 5125B
ABS 5125C
Size of AMS4928 Titanium Ti-6Al-4V Grade 5 plate sheet
Titanium Grade | AMS4928 Titanium Ti-6Al-4V Grade 5 plate sheet | ||
Thickness | 0.5mm--120mm; | ||
Width | 1000mm --4000mm | ||
Length | 1000mm--6000mm | ||
Mechanical properties | Tensile strength/MPa | Yield strength at 0.2% offset /MPa | Elongation in 4D %l.t. |
0.5mm- 8mm | 899 | 828 | 10 |
8mm-60mm | 896 | 827 | 10 |
60mm-120mm | 896 | 827 | 10 |
Composition of AMS4928 Titanium Ti-6Al-4V Grade 5 plate sheet
Element | % |
Aluminum | 5.5-6.75 |
Vanadium | 3.5-4.5 |
Iron | 0.3 |
Oxygen | 0.2 |
Carbon | 0.08 |
Nitrogen | 0.05 |
Hydrogen | 0.0125 |
Yttrium | 0.005 |
Other elements each | 0.1 |
Other elements total | 0.4 |
Tinanium | Balance |
Applications of Titanium Ti-6Al-4V Grade 5 plate sheet
Aerospace: Airframes, jet engine components, and structural parts.
Medical: Implants, surgical instruments, and prosthetics due to biocompatibility.
Marine: Corrosion-resistant components for submarines and seawater systems.
Industrial: Chemical processing equipment and heat exchangers.
Advantages of Titanium Ti-6Al-4V Grade 5 plate sheet
Exceptional strength and toughness.
High corrosion resistance in seawater and chemical environments.
Biocompatible for medical use.
Lightweight yet highly durable.
Easy to weld and form, suitable for complex structures.
