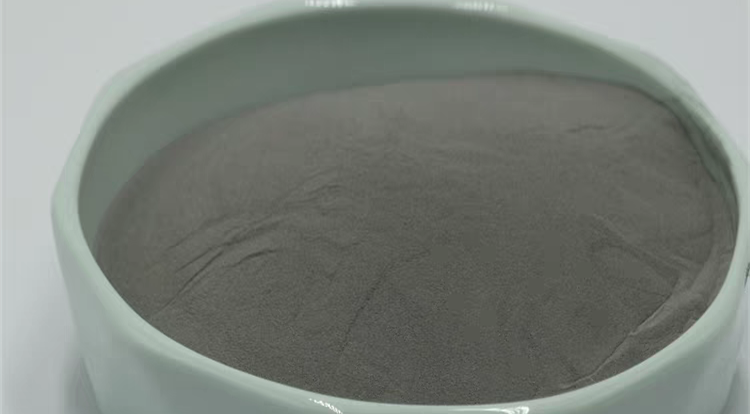

3D Printing TC4 TA15 TC11 TA1 Titanium Powder
Titanium powder, with its exceptional properties such as high strength, low density, corrosion resistance, and excellent biocompatibility, is considered one of the ideal materials for 3D printing. Its application prospects are particularly promising in the aerospace and medical fields.
Detailed Applications of titanium powder
Aerospace: Used for manufacturing aircraft engine blades, fuselage components, etc., to reduce weight and improve fuel efficiency.
Medical Field: Enables customized production of artificial joints, dental implants, and more, meeting the personalized needs of patients.
Automotive Industry: Applied in the production of high-performance automotive components, enhancing vehicle performance and safety.
Titanium Powder such as TC4 ,TA15, TA11 ,TA1, Gr5 ,TI-6.5Al-1Mo-1V-2Zr ,Ti-8Al-1Mo-1V,Gr1 and other customized Titanium alloy grade.Our products is in strict composition control and particle size control to ensure excellent batch stability of products and escort the batch production of large -scale 3D printing parts.
Size of TC4 TA15 TC11 TA1 Titanium Powder
Titanium Powder Grade |
TC 4 TA15 TA1 TC11 | ||||
Main particle size range | 0-25μm | 15-53µm | 45-105µm | 53-150µm | |
Liquidity |
15-53µm | ≤35s/50g | |||
Bulk density | >2.30g/cm³ | ||||
Oxygen content | ≤1000ppm | ||||
Nitrogen content | ≤300ppm | ||||
Mechanical properties | Tensile strength/MPa 1100±50 Yield strength/MPa 900±20 Elongation/% 10±2 | ||||
Composition of TC4 TA15 TC11 TA1 Titanium Powder
Titanium Grade | Al | Fe | C | V | N | O | H | Other | Ti |
TC4 | 5.5-6.75 | 0.30 | 0.08 | 3.5-4.5 | 0.05 | 0.2 | 0.015 | 0.4 | Balance |
TA1 | 0.25 | 0.1 | 0.03 | 0.2 | 0.015 | 0.4 | Balance | ||
TA15 | 5.5-7.1 | 0.25 | 0.18 | 0.8-2.5 | 0.05 | 0.15 | 0.015 | 0.3 | Balance |
TC11 | 5.8-7.0 | 0.25 | 0.08 | 0.05 | 0.15 | 0.012 | 0.4 | Balance |
Advantages of titanium powder
1 .Extremely high yield of fine Titanium powder ,with a yield ＞80% of -53μm particle size ;
2 .Good powder morphology, increasing liquidity by 15% of Titanium Alloy ;
3 .Significantly reducing the cost of Titanium powder .
