Seamless Aluminum Tube Pipe 1050 1060 1070 1035 1085 Alloy H112
Seamless aluminum tubes are made from 1050, 1060, 1070, 1035, and 1085 alloys. Manufacturers use extrusion or drawing to produce these tubes. The process creates tubes without any weld seams. These alloys belong to the 1000 series and contain commercially pure aluminum. The tubes are usually supplied in the H112 temper.
These seamless aluminum tubes offer excellent conductivity and corrosion resistance. They also provide good formability and lightweight strength. Engineers use them in electrical systems such as busbars and transformer tubing. They are also common in heat exchangers, solar heating, and radiator coils. Industrial plants use them for non-corrosive chemical transport. HVAC systems, automotive cooling lines, and architectural structures also rely on these tubes.
Chemical composition of 1050 1060 1070 1035 1085 seamless aluminum tube
Grade | Purity (% Aluminum) | Key Characteristic |
1050 | ≥ 99.5% | Excellent ductility & corrosion resistance |
1060 | ≥ 99.6% | High electrical & thermal conductivity |
1070 | ≥ 99.7% | Used in electrical & chemical equipment |
1035 | ~99.35% | Balanced purity and strength |
1085 | ≥ 99.85% | Very high purity, ideal for decorative use |
1050 1060 1070 1035 1085 seamless aluminum tubes H112 sizes
Outer Diameter (OD) : 4 mm – 180mm
Wall Thickness : 0.5 mm – 30 mm
Length : 100 mm – 12000 mm (straight)
Form : Seamless extruded or drawn tube
Properties of 1050 1060 1070 1035 1085 seamless aluminum tube
Property | Value (varies by alloy) |
Tensile Strength | 60 – 100 MPa |
Yield Strength | 30 – 60 MPa |
Elongation | ≥ 20% |
Electrical Conductivity | 58–62% IACS |
Density | 2.7 g/cm³ |
Shape | Round, square, or rectangular |
Surface | Mill finish, polished, or anodized |
1050 1060 1070 1035 1085 seamless aluminium tube advantages:
Excellent corrosion resistance
Very high thermal and electrical conductivity
Good weldability
Lightweight and easily formable
Economical and recyclable

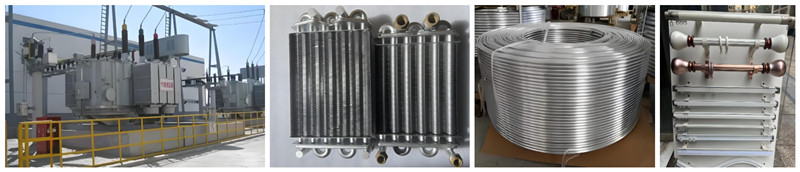

Applications of 1050 1060 1070 1035 1085 seamless aluminium tube
1. Electrical & Conductive Systems
Busbars and current-carrying tubes
Conductive tubing for transformers, switchgear, and grounding
Conduits for wiring in high-frequency or EMI-sensitive environments
2. Thermal & Heat Exchange Applications
Heat exchanger tubes
Tubes for solar water heating systems
Radiator and condenser coils
3. Industrial & Chemical Equipment
Tubes for transporting non-corrosive chemicals
Cost-effective piping for mild acidic or alkaline media (as an alternative to stainless steel)
Coil tubing and fittings for storage tanks
4. Automotive & HVAC Systems
Tubing for automotive A/C and EV cooling systems
Air distribution and ventilation system components
Refrigeration coils
5. Architectural & Decorative Uses
Reflective tubes for lighting fixtures (especially 1085)
Curtain rods, decorative trims, display racks, and furniture frames
Structural tubing for lab and medical equipment in non-reactive environments
