Seamless T3 T4 O 2024 Aluminum Tube Cold Drawn
Cold drawn seamless 2024 aluminum tubes (T3 / T4 / O temper) feature aerospace-grade strength, outstanding fatigue resistance, and precise dimensional control, making them ideal for aerospace, defense, and high-performance engineering applications.
As a professional 2024 aluminum tube supplier, Shenzhen Chinalcometal offers a full range of 2024 aluminum round, square, and rectangular tubes that meet AMS quality standards.

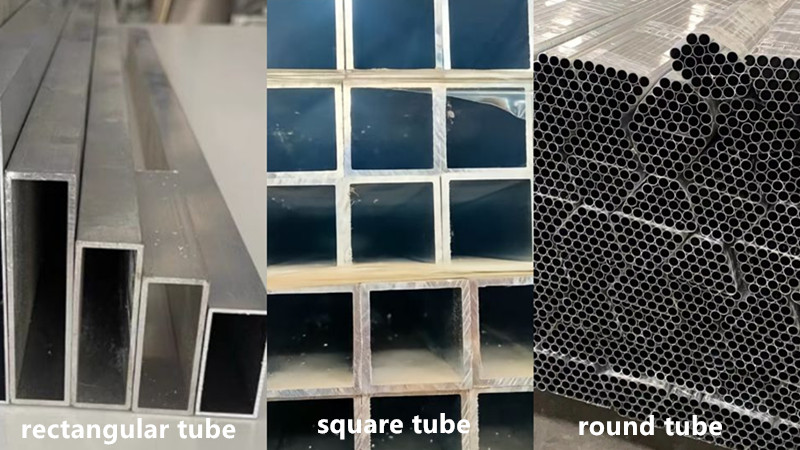

2024 aluminum tube forms
Round Tube – for aircraft hydraulic systems, fuel delivery, and instrumentation lines.
Square Tube – for structural frameworks, brackets, and mechanical assemblies.
Rectangular Tube – for confined structural areas requiring high strength and rigidity such as wing spars and racing components.
2024 aluminum tempers
2024-O (Annealed) – high ductility, suitable for forming.
2024-T3 – solution heat-treated, cold worked, and naturally aged; highest strength.
2024-T4 – solution heat-treated and naturally aged; better formability than T3.
2024-T351 / T3511 – stress-relieved variants for thick-wall or complex components.
AMS Standards
AMS 4083 / AMS 4086 / AMS 4087 / AMS 4088
ASTM B210 / ASTM B483
2024 aluminum tube specifications
Round tube
| Parameter | Specification / Range |
|---|---|
| Outer Diameter (OD) | 6 mm – 250 mm (0.25" – 10") |
| Wall Thickness (WT) | 0.5 mm – 25 mm (0.02" – 1.0") |
| Length | 10 mm – 6000 mm |
| Tolerance | ±0.05 mm – ±0.25 mm |
| Surface Finish (Ra) | ≤0.8 µm (inner & outer) |
| Standards | AMS 4086 / 4087 / 4088, ASTM B210 / B483 |
Rectangular tube
| Parameter | Specification / Range |
|---|---|
| Width | 12.7 mm – 300 mm (0.5" – 12") |
| Height | 12.7 mm – 200 mm (0.5" – 8") |
| Wall Thickness | 1.5 mm – 12.0 mm (0.058" – 0.5") |
| Length | 10 mm – 6000 mm |
| Tolerance | ±0.05 mm – ±0.25 mm |
| Surface Treatment | Anodizing, conversion coating, or cladding |
Square tube
| Parameter | Specification / Range |
|---|---|
| Shape | Square (equal sides) |
| Side Width (A) | 10 mm – 300 mm (0.5" – 12") |
| Wall Thickness (t) | 1 mm – 12 mm |
| Corner Radius (R) | 0.5 – 3.0 mm (typical) |
| Length | Up to 6000 mm (20 ft) |
| Tolerance | ±0.15 mm – ±0.50 mm |
2024 seamless aluminum tube material properties
| Property | 2024-T0 | 2024-T3 | 2024-T4 |
|---|---|---|---|
| Tensile Strength (MPa) | 170–240 | 470 | 420 |
| Yield Strength (MPa) | 60–120 | 325 | 275 |
| Elongation (%) | 18–25 | 10–12 | 13–15 |
| Fatigue Strength (MPa) | 70 | 140 | 120 |
| Hardness (HB) | 45–60 | 120–130 | 105–115 |
| Density (g/cm³) | 2.78 | 2.78 | 2.78 |
2024 cold drawn aluminum tube applications
Round Tubes
Aircraft hydraulic and pneumatic systems
Fuel and oil lines
Landing gear, actuator housings
Ground test and aerospace hydraulic rigs
Square Tubes
Aircraft frames and satellite supports
Motorsport chassis and suspension parts
Structural and instrumentation brackets
Rectangular Tubes
Wing spars, flap supports
Industrial hydraulic frames
Marine structures (with anodized or clad protection)
Advantages of Cold Drawn Seamless 2024 Tubes
High tensile strength (up to 470 MPa in T3)
Excellent fatigue resistance under cyclic pressure
Tight dimensional tolerance ±0.05 mm
Smooth bore for improved fluid flow
Superior surface finish for anodizing or coating
Good machinability and fitting compatibility
Lightweight – density 2.78 g/cm³
Seamless structure for maximum integrity

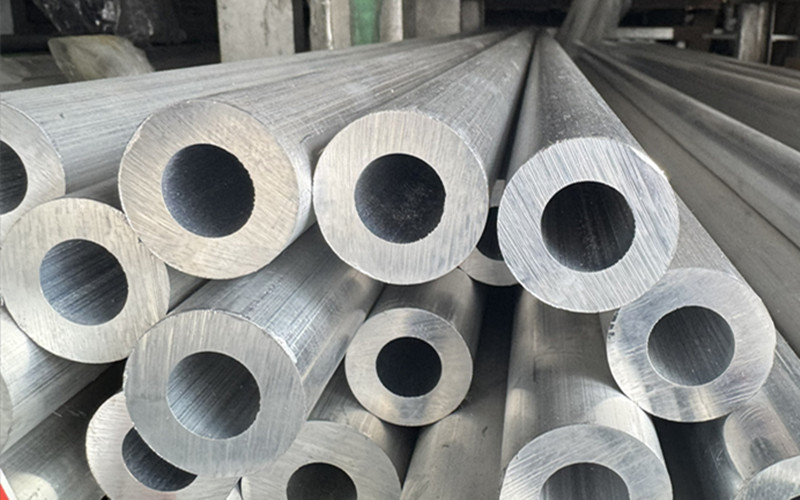

Shenzhen Chinalcometal 2024 aluminum round tube inventory sizes
OD: 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 55 / 60 / 65 / 70 / 75 / 80 / 85 / 90 / 95 / 100 mm
Wall Thickness: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 15 / 20 mm
Length: up to 6000 mm (custom cut available)
