What Materials Are Used in Highway Noise Barriers?


What Materials Are Used in Highway Noise Barriers?

Traffic noise is getting louder. More vehicles, faster speeds, and denser cities all push sound levels higher. For communities living near busy roads, a well-designed sound barrier for roads is no longer a luxury — it is a basic quality-of-life need.

But not all noise barriers are equal. The material you choose decides how much sound gets blocked, how long the barrier lasts, and how much it costs to maintain. This guide covers the most common materials used in highway sound barriers, explains how they work, and takes a close look at why aluminum foam sheet panels deliver the best acoustic performance available today.

1,How Do Noise Barriers Work?

A noise barrier does its job in two ways.

First, it blocks sound. A dense, solid material stops sound waves from passing through. This is called transmission loss. The heavier and thicker the barrier, the more sound it blocks.

Second, it absorbs sound. Some materials convert sound energy into heat as the waves enter their surface. This is called sound absorption. It reduces both the noise that travels through the barrier and the noise that bounces back toward the road.

Most traditional materials — like concrete — are decent at blocking but poor at absorbing. They reflect a lot of sound, which can actually make noise worse on the road side of the barrier. High-performance materials like aluminum foam panels do both jobs well. They block sound and absorb it at the same time.

The unit used to measure noise reduction is the decibel (dB). A 10 dB drop cuts perceived loudness roughly in half. A 30–40 dB reduction makes heavy traffic sound like quiet background noise.

2,What Are Highway Noise Barriers?

Highway noise barriers are structures designed to reduce traffic noise along highways, expressways, and other busy roads. They are generally installed along road boundaries or between traffic lanes and nearby residential or commercial areas.

Their main purpose is to interrupt the direct propagation of traffic noise toward sensitive locations. By blocking the line of sight between vehicles and receivers, a barrier can reduce the noise level in the protected area.

Highway noise barriers come in different forms, including vertical panels, transparent barriers, semi-enclosed structures, and fully enclosed or covered systems. The choice depends on road conditions, surrounding buildings, available installation space, ventilation requirements, and acoustic targets.

The materials used in these structures also vary. Concrete and metal panels are common structural options, while glass wool, rock wool, polyester fiber, polyurethane foam, and aluminum foam may be incorporated as sound-absorbing components.

What Materials Are Used in Highway Noise Barriers?

3,Common Materials for Highway Noise Barriers

Highway noise barriers can be made from a range of materials. Some provide the main structural support and block sound transmission, while others are used to absorb sound within the barrier.

3.1 Concrete and Masonry

Concrete is a traditional material for highway noise barriers. Its high mass helps block sound transmission, and it can be used to construct solid barriers along roads and highways.

Concrete structures are suitable for projects requiring robust, permanent installations. However, they are relatively heavy and may require substantial foundations and installation work.

3.2 Aluminum and Steel Panels

Aluminum and steel are widely used in metal noise barrier systems. They can be formed into panels and assembled into modular structures, making them suitable for different road layouts and installation requirements.

Metal panels may serve as the outer or structural layers of a noise barrier. Perforated metal sheets can also be used as facing panels to allow sound waves to enter an internal sound-absorbing layer.

Aluminum offers a relatively low weight compared with steel, while galvanized or coated steel panels are also common in outdoor installations. The choice depends on structural requirements, corrosion protection, fabrication, and project specifications.

3.3 Acrylic, Polycarbonate, and Glass

Transparent materials such as acrylic, polycarbonate, and glass are used when maintaining visibility is important. They are commonly found along elevated roads, bridges, and sections where solid barriers would obstruct views or reduce natural light.

These materials mainly function as sound-blocking panels. Their acoustic performance depends on factors such as thickness, panel design, joints, and installation quality.

Transparent barriers can also be combined with other materials to meet different structural and acoustic requirements.

3.4 Fiber-Reinforced Plastic (FRP)

Fiber-reinforced plastic (FRP) is a composite material made from reinforcing fibers and a resin matrix. It can be manufactured into panels for noise barrier applications.

FRP panels are relatively lightweight and can be designed for outdoor use. Their properties depend on the fiber type, resin system, panel thickness, and manufacturing process.

FRP should not be confused with glass wool. FRP is a structural composite material, whereas glass wool is a fibrous insulation and sound-absorbing material commonly used inside composite panels.

3.5 Internal Sound-Absorbing Materials

In many highway noise barrier systems, sound-absorbing materials are installed inside the panels rather than used as independent exterior structures. They are usually placed between metal sheets or behind perforated facing panels.

Common materials include glass wool, rock wool, polyester fiber, and polyurethane foam.

Glass Wool

Glass wool is a fibrous material made from fine glass fibers. It is commonly used as an internal sound-absorbing layer in metal noise barrier panels.

When sound waves enter the fibrous structure, air movement within the material creates friction and converts part of the acoustic energy into heat. Glass wool is often installed behind perforated metal sheets, which allow sound waves to reach the absorbing layer.

Rock Wool

Rock wool is manufactured from mineral fibers and is also used as an internal sound-absorbing material. Its fibrous structure helps dissipate sound energy as sound waves pass through it.

In noise barrier systems, rock wool is generally placed inside a metal panel assembly rather than exposed as the main exterior surface. Its suitability depends on the panel design and the protection provided against outdoor conditions.

Polyester Fiber

Polyester fiber is commonly processed into felt, boards, or other shaped products. In noise barrier systems, it can be used as an internal layer between metal panels.

Its fiber network allows air to move through the material. Friction between the moving air and fibers helps dissipate part of the sound energy.

Polyurethane Foam

Polyurethane (PU) foam is produced through a foaming process and can be made into boards or other shapes for acoustic applications. Open-cell polyurethane foam generally allows sound waves to enter its porous structure more readily than closed-cell foam.

In a noise barrier assembly, PU foam may be used as an internal sound-absorbing layer. Its performance depends on cell structure, density, thickness, and the overall panel design.

A typical metal noise barrier panel may consist of a perforated aluminum or galvanized steel facing, an internal sound-absorbing layer, and a solid metal backing sheet. Some designs also incorporate an air cavity. The exact layer arrangement varies according to the product and project requirements.

What Materials Are Used in Highway Noise Barriers?

4. Different Types of Highway Noise Barriers

Highway noise barriers can be classified according to their structural form and installation arrangement. Common types include vertical, transparent, semi-enclosed, and fully enclosed barriers.

4.1 Vertical Noise Barriers

Vertical noise barriers are installed along the sides of roads or highways. They are one of the most common forms of traffic noise control structures.

They can be constructed using concrete, metal panels, transparent sheets, or composite materials. Their height, length, and position are determined by the road layout and the location of nearby noise-sensitive areas.

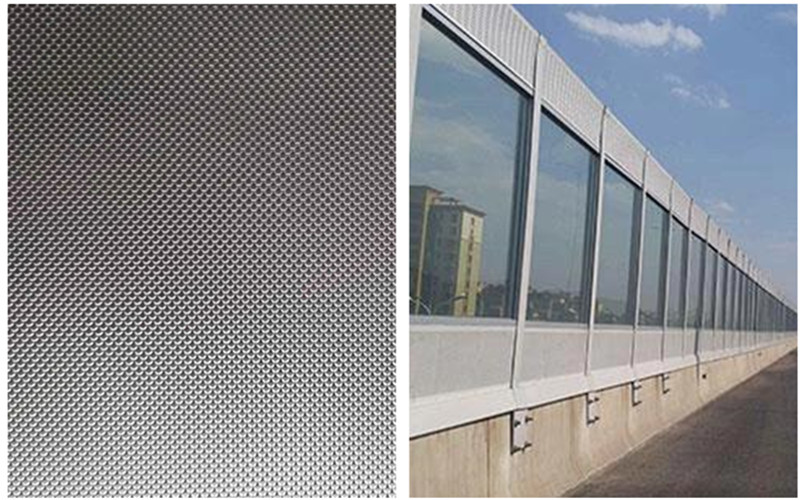

4.2 Transparent Noise Barriers

Transparent barriers are made from materials such as acrylic, polycarbonate, or glass. They are used where visibility and natural lighting need to be maintained.

They are commonly installed on bridges, elevated roads, and sections close to buildings or scenic areas.

4.3 Semi-Enclosed Noise Barriers

Semi-enclosed barriers extend beyond a conventional vertical wall, with additional structures covering part of the road or traffic area.

Their design helps control sound propagation in more directions than a standard vertical barrier. They may be used where conventional roadside barriers cannot provide sufficient noise control.

4.4 Fully Enclosed Noise Barriers

Fully enclosed noise barriers, sometimes called noise enclosures or covered noise barriers, surround the road or traffic area with a roof and side structures.

They are designed for locations with demanding noise-control requirements, such as urban expressways or roads passing close to residential buildings. Their design needs to consider ventilation, lighting, drainage, fire safety, and maintenance in addition to acoustic performance.

What Materials Are Used in Highway Noise Barriers?

5. Reflective, Absorptive, and Composite Noise Barriers

Noise barriers can also be classified according to how their surfaces and internal structures interact with sound waves. The three common categories are reflective, absorptive, and composite noise barriers.

5.1 Reflective Noise Barriers

Reflective noise barriers mainly reduce noise by blocking the direct sound path and reflecting sound energy away from the protected area.

Concrete walls and solid metal panels are typical examples. Their effectiveness depends on the barrier's mass, dimensions, location, and surrounding environment.

5.2 Absorptive Noise Barriers

Absorptive noise barriers incorporate materials that convert part of the incoming sound energy into heat through friction and other energy-loss mechanisms.

Perforated metal panels combined with glass wool, rock wool, polyester fiber, polyurethane foam, or aluminum foam are common examples.

The sound-absorbing performance depends on the material's structure, thickness, porosity, and the presence of an air cavity behind it.

5.3 Composite Noise Barriers

Composite noise barriers combine sound-blocking and sound-absorbing components in one structure.

For example, a system may use a metal outer panel for structural support, a perforated facing to admit sound waves, an internal absorbing layer, and a solid backing sheet. Depending on the design, an air cavity may also be included.

This combination allows the barrier to perform both sound insulation and sound absorption functions. The specific arrangement should be selected according to the acoustic and structural requirements of the project.

What Materials Are Used in Highway Noise Barriers?

6. Aluminum Foam Panels for Highway Noise Barriers

Aluminum foam is a porous metal material with a cellular structure. It combines the characteristics of metal with a large number of internal pores, making it useful in applications that require lightweight structures, energy absorption, and sound absorption.

In noise-control applications, aluminum foam can be used as a direct-mounted panel or incorporated into a composite structure with other metal sheets and air cavities.

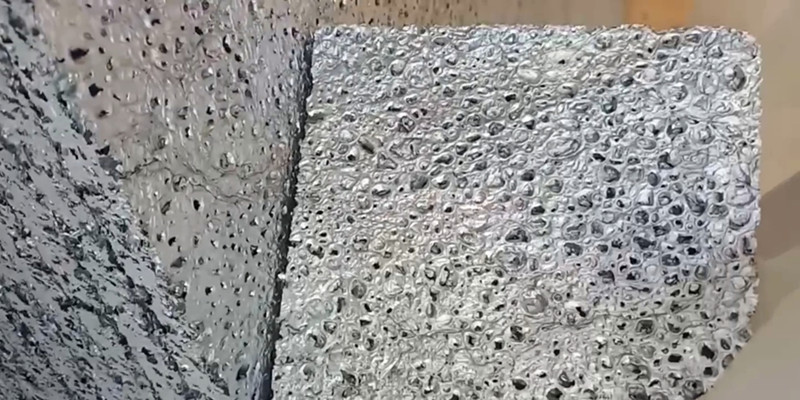

6.1 What Is Aluminum Foam?

Aluminum foam is a lightweight metallic material containing numerous pores within an aluminum matrix. These pores give the material a cellular structure and reduce its density compared with solid aluminum.

Depending on the manufacturing process, aluminum foam can be produced with different pore sizes, porosities, and cell structures. These characteristics affect its mechanical properties and acoustic behavior.

For noise barrier applications, aluminum foam is mainly considered for its sound-absorbing potential and its ability to form a rigid metal panel.

6.2 Open-Cell and Closed-Cell Aluminum Foam

Aluminum foam is generally divided into open-cell and closed-cell types according to the connectivity of its pores.

Open-Cell Aluminum Foam

In open-cell aluminum foam, the pores are interconnected, allowing air to pass through the material. When sound waves enter these interconnected pores, the movement of air causes friction and energy loss along the pore walls.

This structure makes open-cell aluminum foam suitable for sound-absorbing applications. Its performance is influenced by pore size, porosity, thickness, and the acoustic structure behind the panel.

Closed-Cell Aluminum Foam

In closed-cell aluminum foam, most pores are separated by metal walls. Air cannot move through the material in the same way as in an open-cell structure.

Closed-cell aluminum foam is often used where lightweight construction and mechanical properties are important. Its sound-absorption behavior differs from that of open-cell foam. If sound absorption is required, additional surface or structural treatments may be needed.

6.3 Sound Absorption Mechanism of Aluminum Foam

The sound-absorbing mechanism of open-cell aluminum foam is mainly related to the movement of air within its interconnected pores.

When sound waves enter the material, air particles oscillate within the narrow pore channels. Friction between the moving air and the pore walls converts part of the acoustic energy into heat.

The sound-absorbing performance is affected by several factors:

  • Pore size: The size and distribution of pores influence airflow resistance and sound-wave interaction.

  • Porosity: The proportion of open space affects how air moves through the material.

  • Thickness: Material thickness influences the frequency range in which sound absorption occurs.

  • Air cavity: An air space behind the foam can change the acoustic response of the overall structure.

  • Surface design: Perforated facing panels and other structural treatments affect how sound waves enter the absorbing layer.

For this reason, aluminum foam should be evaluated as part of the complete noise barrier structure rather than by its material name alone.

What Materials Are Used in Highway Noise Barriers?

6.4 Direct-Mounted Aluminum Foam Panels

Aluminum foam panels can be installed directly as sound-absorbing elements in certain noise barrier designs.

In this arrangement, the foam panel is mounted onto a supporting structure or used as an exposed panel, depending on the product design. Sound waves enter the open-cell structure, where part of their energy is dissipated through friction within the pores.

The panel thickness, pore structure, mounting method, and backing conditions all influence the final acoustic performance.

For outdoor applications, the design should also consider water drainage, dust accumulation, surface protection, fixing methods, and maintenance.

What Materials Are Used in Highway Noise Barriers?

6.5 Aluminum Foam Composite Panels with Air Cavities

Aluminum foam can also be combined with other metal sheets to form a composite noise-absorbing panel.

A typical design may include:

  • A perforated aluminum facing panel that allows sound waves to enter.

  • An aluminum foam layer that absorbs part of the sound energy.

  • An air cavity that contributes to the acoustic response of the structure.

  • A solid metal backing panel that provides support and helps block sound transmission.

The exact layer arrangement and air cavity position depend on the panel design. Not every aluminum foam composite panel uses the same structure.

Compared with a single-layer panel, a composite structure allows designers to combine the functions of different components. The metal sheets provide structural support, while the porous foam and air cavity contribute to sound absorption.

6.6 Key Advantages of Aluminum Foam in Outdoor Noise Barriers

Aluminum foam offers several characteristics that make it worth considering for outdoor noise barrier applications.

Metal-Based Structure

Unlike conventional fibrous absorbing materials, aluminum foam has a metallic matrix. It can be fabricated into rigid panels and incorporated into metal structures.

Lightweight Construction

Its porous structure gives aluminum foam a lower density than solid aluminum. This can help reduce panel weight, although the total weight of a finished composite panel depends on its metal sheets, supporting frame, and other components.

Sound-Absorbing Potential

Open-cell aluminum foam can absorb sound through airflow and friction within its interconnected pores. Its acoustic performance depends on material specifications and the overall panel design.

Design Flexibility

Aluminum foam can be used as a direct-mounted panel or combined with perforated metal sheets, backing panels, and air cavities. This provides flexibility when designing different noise barrier structures.

Outdoor Application Considerations

As a metal-based material, aluminum foam can be incorporated into outdoor structures. However, the finished system still needs appropriate consideration of drainage, surface treatment, corrosion protection, joints, and fixing components.

7. Aluminum Foam vs. Traditional Sound-Absorbing Materials

Aluminum foam, glass wool, rock wool, polyester fiber, and polyurethane foam can all be used in sound-absorbing applications, but their material structures and installation methods differ.

The following table compares their general characteristics in noise barrier systems.

MaterialMaterial StructureTypical Use in Noise BarriersMain Considerations
Aluminum foamPorous metallic structure; available in open-cell and closed-cell formsDirect-mounted panels or composite sound-absorbing layersAcoustic performance depends on pore structure, thickness, and backing design
Glass woolFibrous material made from fine glass fibersInternal filling layer behind perforated metal panelsRequires suitable protection and enclosure in outdoor panel systems
Rock woolFibrous material made from mineral fibersInternal sound-absorbing layerRequires appropriate panel construction and protection from environmental exposure
Polyester fiberNonwoven or felt-like fiber structureInternal layer between metal panelsProduct density, thickness, and fiber structure affect acoustic performance
Polyurethane foamCellular polymer foam; open-cell and closed-cell typesInternal sound-absorbing layerOpen-cell structures are generally more suitable for sound absorption

The main difference is that aluminum foam is a metal-based porous material, while glass wool, rock wool, and polyester fiber rely on fibrous structures. Polyurethane foam uses a cellular polymer structure.

These materials are not interchangeable in every application. Selection should consider the required acoustic performance, panel structure, outdoor exposure, mechanical requirements, installation method, and maintenance conditions.

8. How to Choose Materials for Highway Noise Barriers

Choosing materials for a highway noise barrier requires consideration of both acoustic performance and the conditions of the installation site.

Acoustic Requirements

The first step is to identify the noise-control target and the type of barrier required. A reflective structure, an absorptive panel, and a composite system have different design requirements.

Structural Requirements

Barrier height, wind load, supporting structures, panel dimensions, and installation conditions all affect material selection. The weight and mechanical properties of each component should be considered as part of the complete system.

Outdoor Environment

Highway barriers are exposed to rain, sunlight, temperature changes, dust, and other environmental factors. Surface protection, drainage, corrosion resistance, and maintenance access should be considered during design.

Visibility and Surrounding Conditions

Transparent panels may be suitable where visibility and natural light are important. Solid metal or concrete structures may be more appropriate in other locations. Road layout and nearby buildings also influence the barrier form.

Material and Panel Design

The choice is not limited to selecting an absorbing material. The facing panel, internal layer, air cavity, backing sheet, frame, and connection method all contribute to the performance of the finished noise barrier.

For this reason, material selection should be based on the complete panel design and project requirements rather than on a single material property.

9. Conclusion

Highway noise barriers use different materials and structural designs to reduce traffic noise. Concrete, aluminum, steel, transparent panels, and FRP are commonly used as structural or facing materials, while glass wool, rock wool, polyester fiber, and polyurethane foam are often incorporated as internal sound-absorbing layers.

Aluminum foam provides another option for noise-control applications. Its open-cell structure can absorb sound through airflow and friction within interconnected pores. It can be installed directly or combined with metal panels and air cavities to form composite structures.

The right material depends on the acoustic target, structural design, outdoor environment, and installation conditions. Evaluating the complete noise barrier system is essential to achieving the intended performance.
