2219 Aluminum T851 Plate Aerospace Alloy AMS 4295
The 2219 aluminum plate is known for its exceptional fracture toughness and stress corrosion resistance, making it ideal for high-temperature applications. This precipitation age-hardenable, heat-treatable alloy is particularly valuable in scenarios where welding is necessary. It offers a balance of impressive mechanical properties and machinability. To achieve the T851 temper, 2219 aluminum undergoes solution heat treatment, stress relieving, and artificial aging. It is available in a range of sizes and tempers, including the T851.

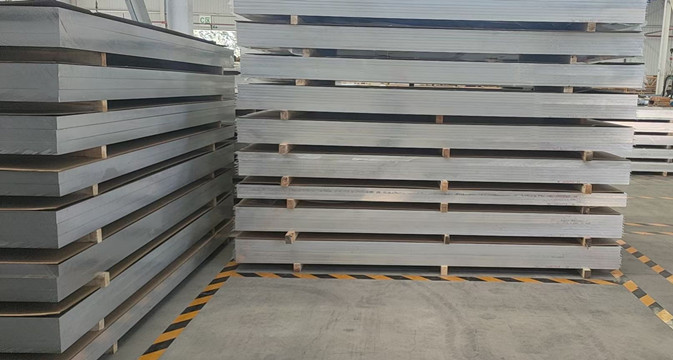

2219 t851 Aluminum Plate Stock list
AMS4295 ALUMINUM PLATE | Size (mm) |
2219-T851 | 12.7*1800*4600mm |
2219-T851 | 15.8*1800*4600mm |
2219-T851 | 19.1*1800*4600mm |
2219-T851 | 22.8*1800*4600mm |
2219-T851 | 25.4*1800*4600mm |
2219-T851 | 28.5*1800*4600mm |
2219-T851 | 31.7*1800*4600mm |
2219-T851 | 35.0*1800*4600mm |
2219-T851 | 38.1*1800*4600mm |
2219-T851 | 40.0*1800*4600mm |
2219-T851 | 44.4*1800*4600mm |
2219-T851 | 48.0*1800*4600mm |
2219-T851 | 50.8*1800*4600mm |
2219-T851 | 55.0*1800*4600mm |
2219-T851 | 57.1*1800*4600mm |
2219-T851 | 60.0*1800*4600mm |
2219-T851 | 63.5*1800*4600mm |
2219-T851 | 65.0*1800*4600mm |
2219-T851 | 69.8*1800*4600mm |
2219-T851 | 82.5*1800*4600mm |
2219-T851 | 88.9*1800*4600mm |
2219-T851 | 101.6*1800*4600mm |
2219-T851 | 114.3*1800*4600mm |
2219-T851 | 127.0*1800*4600mm |
2219-T851 | 139.7*1800*4600mm |
2219-T851 | 152.4*1800*4600mm |
Aluminum 2219 Chemical Composition
| Element | Content (wt%) |
|---|---|
| Al | Balance |
| Cu | 5.8 – 6.8 |
| Mn | 0.2 – 0.4 |
| Zr | 0.10 – 0.25 |
| Fe | ≤ 0.30 |
| Si | ≤ 0.20 |
| V | ≤ 0.05 |
| Zn | ≤ 0.10 |
| Ti | ≤ 0.10 |
2219 Aluminum Properties (T851)
| Property | Value |
|---|---|
| Density | ~2.84 g/cm³ |
| Ultimate Tensile Strength | 430 – 480 MPa |
| Yield Strength | 320 – 370 MPa |
| Elongation | 6 – 10% |
| Elastic Modulus | ~73 GPa |
| Fatigue Strength | 150 – 180 MPa |
| Shear Strength | 260 – 300 MPa |
| Hardness | 120 – 140 HB |
| Thermal Conductivity | 120 – 140 W/m·K |
| Electrical Conductivity | 30 – 35% IACS |
| Corrosion Resistance | Medium to low |
2219 t851 Aluminum Plate Applications
Aerospace structural components
Fuel tanks
High temperature structural applications
