Free-Cutting Aluminum Alloy Supplier--6262 Aluminum Bar, Rod, and Tube
6262 aluminum alloy is a free-machining aluminum material from the 6xxx series (Al-Mg-Si), specifically developed for high-speed CNC machining and precision components.
It contains trace amounts of bismuth (Bi) and lead (Pb), which significantly improve chip breaking and machining efficiency while maintaining good corrosion resistance—making it a balanced alternative to 2011 aluminum.
6262 Aluminum Chemical Composition
| Element | Content (%) |
|---|---|
| Aluminum (Al) | Balance |
| Magnesium (Mg) | 0.8 – 1.2 |
| Silicon (Si) | 0.4 – 0.8 |
| Bismuth (Bi) | 0.4 – 0.7 |
| Lead (Pb) | 0.4 – 0.7 |
| Iron (Fe) | ≤ 0.7 |
| Copper (Cu) | ≤ 0.15 |
| Zinc (Zn) | ≤ 0.25 |
| Others | ≤ 0.15 |
6262 Aluminum Temper Options
6262 aluminum is available in multiple tempers to meet different machining and strength requirements:
T6 – Solution heat-treated and artificially aged
→ Standard temper for general CNC machiningT651 – T6 + stress relieved by stretching
→ Improved dimensional stability, reduced distortionT9 – Solution heat-treated, cold worked, and artificially aged
→ Higher strength with improved machining performance
Size Range for 6262 Aluminum Bars · Rods · Tubes

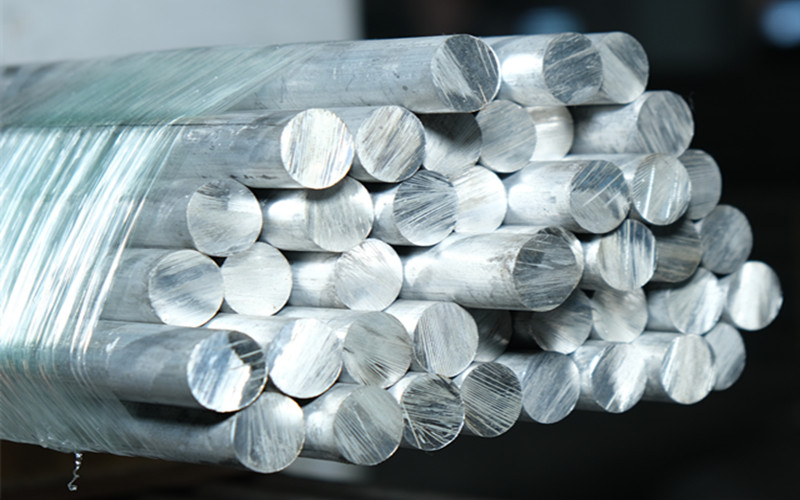

Aluminum Bars (Round / Hex / Square)
| Type | Size Range |
|---|---|
| Round Bar Diameter | 5 mm – 550 mm |
| Hex Bar | 5 mm – 150 mm (across flats) |
| Square Bar | 5 mm – 150 mm |
| Length | 1000 mm – 6000 mm |
| Tolerance | H9 / H11 (precision available) |
Aluminum Rods (Precision / Cold Drawn)
| Parameter | Range |
|---|---|
| Diameter | 3 mm – 100 mm |
| Length | 1000 mm – 4000 mm |
| Straightness | High precision (CNC / automatic lathes) |

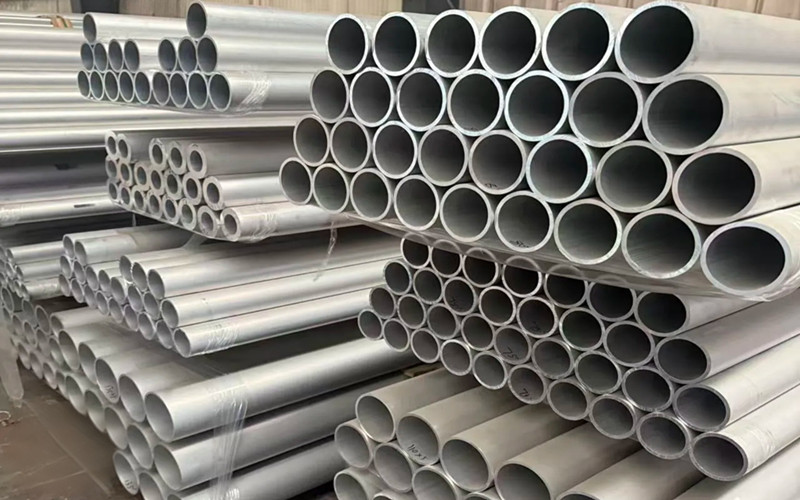

Aluminum Tubes (Seamless / Extruded)
| Parameter | Range |
|---|---|
| Outer Diameter (OD) | 6 mm – 150 mm (Seamless) |
| 30 mm – 300 mm (Extruded) | |
| Wall Thickness | 1 mm – 20 mm |
| Length | 1000 mm – 6000 mm |
6262 Aluminum Properties
| Property | Value |
|---|---|
| Alloy Series | 6xxx (Al-Mg-Si) |
| Machinability | Excellent |
| Strength | Moderate |
| Corrosion Resistance | Good |
| Anodizing | Good |
| Weldability | Moderate |
| Surface Finish | Good |
| Density | ~2.70 g/cm³ |
Key Advantage:
✔ Excellent machinability + good corrosion resistance
✔ Better corrosion resistance than 2011 aluminum
✔ Suitable for both CNC machining and outdoor/industrial environments
Applications of 6262 Aluminum Bars, Rods, and Tubes
6262 aluminum is widely used for precision machined components that require both machinability and corrosion resistance:
Optical lens housings
Carburetor components
Brake system parts
Solenoid valve sleeves
Valve cores and fittings
Threaded mechanical components
Industrial automation parts
CNC turned parts
Why Choose Our Free-Cutting Aluminum Alloys?
Stable chemical composition and machining performance
Available in bars, rods, tubes, and custom profiles
Tight dimensional tolerances for CNC machining
Suitable for automatic lathe and high-speed machining
Custom sizes and cutting services available
