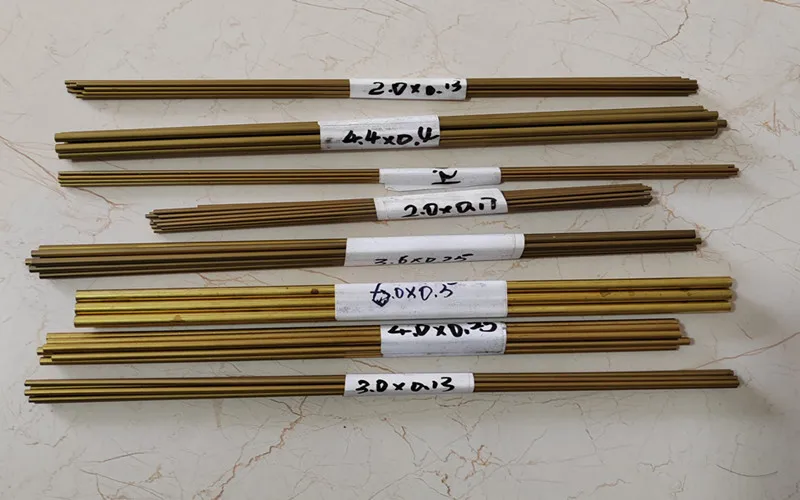

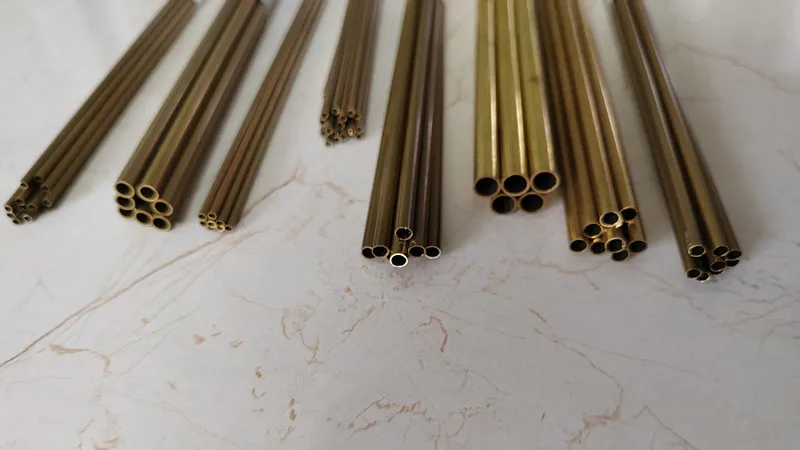

0.8–40 mm OD Precision Brass Capillary Tube

Brass capillary tubes are precision thin-wall tubes designed for applications that require compact dimensions, reliable mechanical performance, good corrosion resistance, and controlled material properties. Shenzhen Chinalcometal supply 0.8mm---40mm in a wide range of grades H96, H90, H85, H80, H70, H68, H65, H63, and H62, with shapes round, oval, square, rectangular, and hexagonal tubing. Custom dimensions and specifications available according to drawings and application requirements.

Precision Brass Tube Size Range

· OD: 0.8 mm --- 40 mm

· Wall thickness: 0.08 mm --- 2.00 mm

· Length: Standard or customized

· Shape: Round, oval, square, rectangular, hexagonal

· Special dimensions: Available according to drawings or technical specifications

Brass Capillary Tube Grades & International Equivalents

Shenzhen Chinalcometal Brass Capillary Tube Advantages:

1. Small Diameter and Thin Wall

Our brass capillary tubing can be supplied with outside diameters starting from 0.8 mm and wall thicknesses from 0.08 mm, making it suitable for precision components and compact assemblies.

2. Excellent Machinability

Brass is widely used for precision components because many brass grades offer excellent machinability, allowing the tube to be cut, drilled, formed, swaged or machined efficiently.

3. Good Corrosion Resistance

Brass provides good resistance to atmospheric corrosion and is suitable for many plumbing, sanitary, decorative and industrial environments.

4. Good Thermal and Electrical Conductivity

Brass offers useful electrical and thermal conductivity, making selected grades suitable for electrical terminals, heat-transfer components and other conductive applications.

5. Multiple Shapes

In addition to conventional round brass tubing, we can supply:

· Round brass tube

· Oval brass tube

· Square brass tube

· Rectangular brass tube

· Hexagonal brass tube

· Special/custom-shaped brass tube

6. Customized Dimensions

Custom brass capillary tubes can be produced according to customer drawings, OD, ID, wall thickness, length, shape and dimensional requirements.

Brass Capillary Tube Applications

Electrical Terminals

Brass capillary and precision tubes are used for electrical terminals, connectors, contact components and conductive parts where good machinability and electrical performance are required.

Heat Exchangers

Brass tubing can be used in selected heat exchanger and heat-transfer applications, benefiting from its thermal conductivity and corrosion resistance.

Tubular Rivets

Small-diameter brass tubes are suitable for manufacturing tubular rivets, hollow rivets and small fastening components.

Stationery

Precision brass tubing can be used for stationery components, mechanical pen parts and decorative writing instruments.

Plumbing

Brass tubing is widely used in plumbing fittings, fluid connections, valves and sanitary components, depending on the applicable grade and regulatory requirements.

Decorative Applications

Brass provides an attractive metallic appearance and can be polished, brushed, plated or otherwise finished for architectural and decorative components.

Musical Instruments

Selected brass tubing is used in the manufacture of musical instruments and instrument components, where formability, acoustic properties and surface finish are important.

Sanitary Applications

Brass tubing can be supplied for sanitary fittings, bathroom components and plumbing hardware according to the required material and compliance specifications.

Shenzhen Chinalcometal Quality Control

Our brass capillary tubes can be inspected according to the agreed technical specification, including:

· Chemical composition

· Outside diameter

· Inside diameter

· Wall thickness

· Length

· Straightness

· Surface quality

· Mechanical properties

· Hardness

· Dimensional tolerances

· Visual inspection

Inspection documentation such as Mill Test Certificates (MTC) and other quality documents can be supplied according to customer requirements.

FAQ before purchasing

What is the smallest brass capillary tube you supply?

Our stated size range starts from 0.8 mm outside diameter with wall thicknesses from 0.08 mm.

Can you supply rectangular or square brass capillary tubes?

Yes. In addition to round tubes, we supply oval, square, rectangular, hexagonal and customized brass tubing.

Which brass grade is best for electrical terminals?

The appropriate grade depends on the required electrical conductivity, strength, machinability, forming requirements and applicable standard. C26000/H70 and other brass grades may be considered depending on the application.

Can brass capillary tubes be customized?

Yes. We can evaluate customized OD, ID, wall thickness, length, shape, alloy and temper based on customer drawings or technical specifications.

Can you supply brass capillary tubes in coils?

Coiled supply may be available depending on the tube diameter, wall thickness, alloy and required temper. Straight lengths can also be supplied.
