Refrigerator Copper Line Tube and Fittings

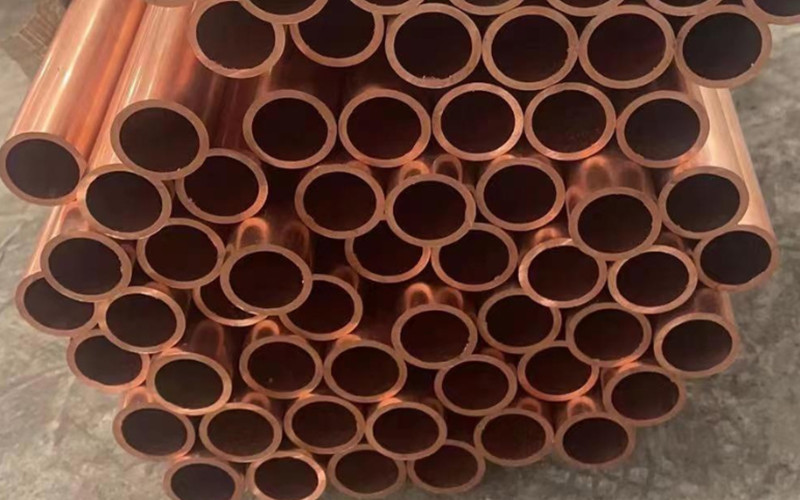

Our refrigerator copper line tube is an essential component in modern cooling systems, ensuring efficient and reliable refrigerant circulation. Manufactured from high-purity copper (≥99.9%), this copper refrigeration tube delivers excellent thermal conductivity, corrosion resistance, and long-term durability. It is widely used in household refrigerators, freezers, and display coolers.
With a smooth inner wall and precise dimensions, our copper tube for refrigeration reduces flow resistance and enhances energy efficiency. Both soft (annealed) and hard temper types are available, suitable for flaring, welding, and bending processes. Whether for OEM manufacturing or HVAC system maintenance, our copper tubing supports secure, leak-free connections.
Common Types of Copper Refrigeration Tubes
Our copper refrigeration tubing is available in multiple types depending on its role in the system:
Capillary Tube: Used for metering refrigerant between the condenser and evaporator.
Suction Line: Carries low-pressure vapor refrigerant from evaporator to compressor.
Discharge Line: Transports high-temperature refrigerant vapor from the compressor to the condenser.
Liquid Line: Carries condensed refrigerant to the expansion device or evaporator.
These tubes meet standard copper pipe sizes for HVAC applications and are compatible with common system layouts.
Standard Refrigeration Copper Tube Sizes
| Outer Diameter (mm) | Outer Diameter (inch) | Wall Thickness (mm) | Typical Use |
|---|---|---|---|
| 6.35 | 1/4" | 0.7–1.0 | Capillary, Liquid Line |
| 9.52 | 3/8" | 0.8–1.2 | Liquid or Suction Line |
| 12.7 | 1/2" | 1.0–1.5 | Suction, Discharge Line |
| 15.88 | 5/8" | 1.0–1.5 | Main Line, Discharge Line |
(Custom lengths and wall thicknesses available. Packaged in coils or straight lengths.)
If you are curious about the handling process of copper tube, the blog how to cut, bend and solder copper pipe tube offer you a detailed guide.

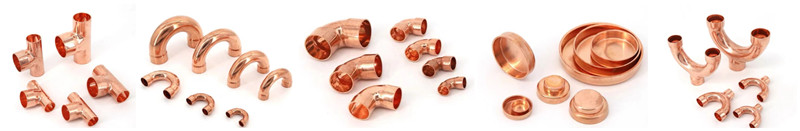

Copper Fittings for Refrigeration Systems
To ensure reliable connections across different segments of the refrigeration circuit, we also supply a full range of copper fittings, including:
Flare Fittings: Ideal for removable joints.
Copper Elbows (45°/90°): Used to change piping direction.
Tee & Reducers: Connect tubes of different diameters.
Valve Seats, Nuts, and Adapters: For control and sealing needs.
All fittings comply with copper pipe dimensions used in refrigeration and HVAC systems, supporting secure brazing and threaded installation.
Whether you're sourcing copper pipe for HVAC, looking for reliable copper pipe sizes for refrigeration, or need tailored refrigeration copper tube sizes, Shenzhen Chinalco Metal provides quality products and expert support. Contact us today for a quotation or sample request.
