How to Cut, Bend, and Solder Copper Pipe Tube?

Copper pipes and tubes are widely used in HVAC, refrigeration, plumbing, and industrial piping systems thanks to their excellent thermal conductivity, corrosion resistance, and formability. However, achieving leak-free, long-lasting performance depends not only on the copper material itself, but also on correct cutting, bending, deburring, and soldering/brazing techniques.

This article combines DIY-friendly instructions with industrial-grade processing knowledge, giving homeowners, installers, and manufacturers a complete, practical guide.

How to Cut Copper Pipe Correctly

Accurate cutting is the foundation of reliable copper pipe installation. Poor cutting can lead to misalignment, leakage, and reduced system efficiency.

Accurate Measurement Before Cutting

Precision cutting follows three principles: define the required finished length, reserve processing allowance, and verify before cutting.

• Define finished length: Measure the required net length using a tape measure or vernier caliper, marking a clear reference point at the pipe end.

• Reserve cutting allowance:

• Manual cutting: 2–3 mm

• Mechanical cutting: 1–2 mm

• Additional chamfering or flaring: +3–5 mm

• Double-line marking: Draw two parallel cutting lines around the pipe circumference to avoid deviation caused by blurred single lines.

• Segment planning: When cutting multiple sections from one long pipe, cut longer sections first to minimize scrap.

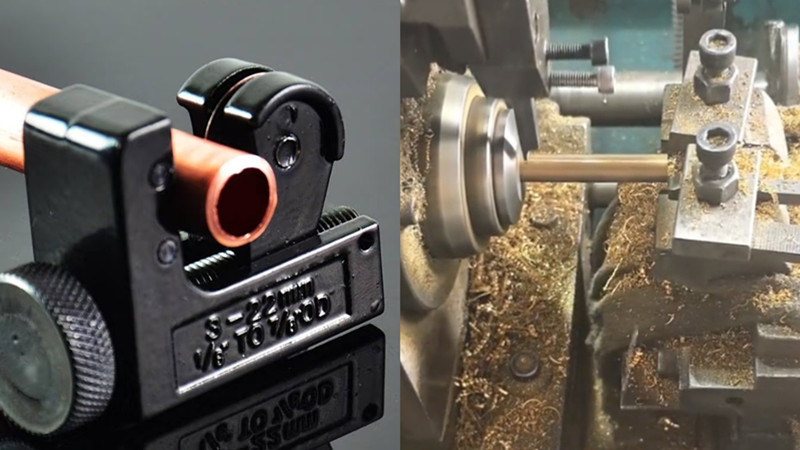

Cutting tools choices

For DIY Users

Tools Needed: Copper pipe cutter, deburring tool, marker.

Steps:

1. Mark the cutting position clearly with a marker.

2. Clamp the pipe cutter onto the pipe, align it with the mark, and rotate slowly while gently tightening.

3. After several turns, the pipe will separate cleanly.

4. Use a deburring tool to clean the inner and outer edges to prevent injury and sealing issues.

Note: Avoid using hacksaws or abrasive wheels. They often cause uneven cuts and metal chips that may contaminate or block the system.

For Industrial Production

In manufacturing lines and refrigeration assembly, cutting must prioritize efficiency, repeatability, and dimensional consistency.

Common industrial cutting methods include:

• Fully automatic tube cutting machines – ideal for batch production with high precision and speed.

• Electric rotary cutters with CNC feeding – suitable for multi-spec applications with automated length control.

• Laser or plasma cutting – used for special tubes or high-precision requirements, though at higher cost.

Industrial cutting is typically followed by automatic deburring, cleaning, and inspection to ensure consistent weld and brazing quality.

Why Proper Clamping Matters During Cutting

Secure clamping is critical for cutting accuracy, operator safety, and tool life.

• Prevents cutting deviation: An unsecured pipe may rotate or shift, resulting in skewed cuts and scrap.

• Avoids blade crawling and kickback: Pipe movement destabilizes cutting forces, accelerating tool wear and increasing injury risk.

Common Pipe Clamping Methods:

Manual V-blocks,

pneumatic three-jaw chucks,

hydraulic external clamps,

vacuum suction systems,

steel strap binding

Tools above are commonly used depending on pipe diameter, wall thickness, and production volume.

Internal Deburring After Cutting Copper Pipe

Why Deburring Is Essential

• Improves soldering and brazing quality by eliminating stress concentration points and preventing slag inclusion or porosity.

• Optimizes fluid flow by reducing turbulence, pressure loss, and the risk of blockage.

Common Deburring Methods

• Manual deburring: Chamfering tools or reamers for small batches and small diameters.

• Mechanical deburring: Controlled grinding for medium batches (typical removal: 0.1–0.3 mm).

• High-pressure water jet deburring: For thin-wall or special pipes in high-volume production.

Acceptance criteria: Smooth inner wall, no sharp edges, inner diameter deviation within ±0.2 mm.

How to Bend Copper Pipe

Correct bending ensures smooth flow paths and reduces the number of joints in a piping system.

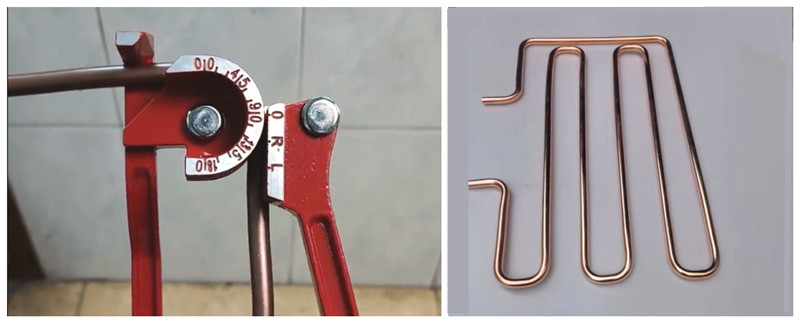

For DIY Users

Recommended Tools:

• Spring-type manual bender – suitable for 6–10 mm soft copper tube.

• Lever-type pipe bender – provides accurate angle control for plumbing or air-conditioning installations.

Key Points:

• Use annealed (soft temper) copper pipe.

• Minimum bending radius: at least 3× the pipe diameter.

• Apply even force to avoid kinking or flattening.

Tip: If a bender is unavailable, fill the pipe with fine sand, seal both ends, and gently heat before bending. This method is only recommended for small repairs.

For Industrial Production

Industrial bending emphasizes efficiency, uniformity, and structural integrity.

• CNC pipe bending machines – cold bending with precise radius and angle control; suitable for multi-position programs.

• Hydraulic benders / roll-forming – for thick-wall or large-diameter copper pipes.

• Hot bending with molds – for special radii or complex geometries.

Post-bending processes often include straightening, dimensional inspection, and leak testing.

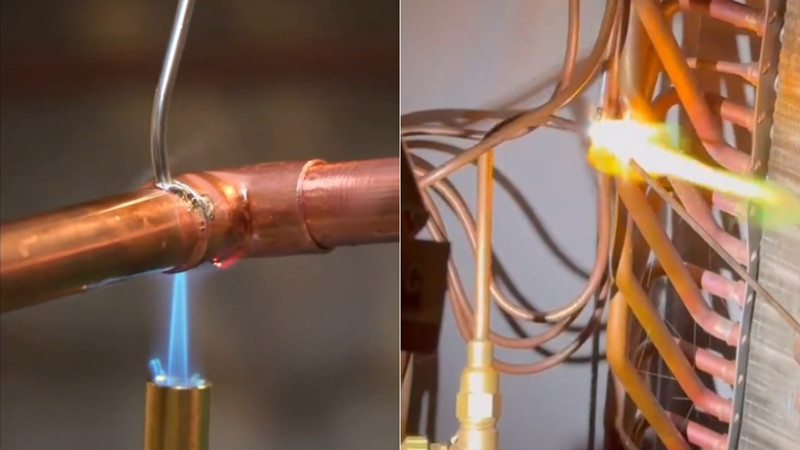

How to Solder Copper Pipe?

Standard Brazing Procedure

(Oxy-Acetylene Brazing Example – Suitable for HVAC, Air Conditioning, and Refrigeration Piping Systems)

Pre-Brazing Preparation

• Clean the joint surfaces of the copper pipes using sandpaper or a wire brush to remove oxide layers, oil, and dust.
  The cleaning area should extend 10–15 mm on both sides of the joint.

• Assemble the copper pipe joints according to specifications, controlling the joint clearance within 0.05–0.15 mm.
  Secure the pipes with fixtures to ensure proper alignment and coaxiality, preventing misalignment during brazing.

• Select appropriate brazing filler metal:

• Phosphorus-copper brazing rods (e.g., BCuP-2) for copper-to-copper joints (flux not required)

• Brass brazing filler metals must be used together with borax-based flux
  Cut the filler metal into short pieces for convenient feeding during brazing.

Preheating and Brazing

• Ignite the oxy-acetylene torch and adjust it to a neutral flame (a clearly defined inner cone, without excessive oxidation or carbonization).
  Uniformly preheat the joint area by moving the flame in a circular motion around the outer surface of the pipe to avoid localized overheating.

• When the joint temperature reaches the melting range of the filler metal (approximately 700–800 °C, with the copper surface appearing dull red), bring the filler metal into contact with the joint gap.
  Allow the filler metal to melt and flow into the joint by the heat of the base material.
  Do not melt the filler metal directly with the flame.

• Once the joint is fully filled, remove the flame immediately.
  Keep the pipes fixed in position and allow the joint to cool naturally to room temperature.

Post-Brazing Treatment

• If flux was used, clean off any residual flux after cooling using hot water or a brush to prevent corrosion of the copper pipe.

• Visually inspect the brazed joint. A qualified joint should be smooth and fully filled, without porosity, slag inclusions, or cracks.
  Perform an airtightness or pressure test when required.

Key Precautions

Gas Supply and Flame Control

• Oxygen and acetylene cylinders must be kept at a safe distance of at least 5 meters, away from open flames and heat sources, and equipped with flashback arrestors.

• Oxidizing flames are strictly prohibited, as they accelerate copper oxidation and cause brittle joints.
  Carburizing flames may increase carbon absorption and reduce joint toughness.

Operating Practices

• When brazing thin-wall copper pipes, avoid excessive heating time to prevent burn-through or deformation.

• For refrigeration piping, nitrogen purging is required before and during brazing.
  Maintain a nitrogen flow rate of 0.5–1 L/min to prevent internal oxidation, which may generate scale and block expansion valves or capillary tubes.

Safety Protection

• Operators must wear safety goggles, heat-resistant gloves, and protective clothing to prevent burns and eye injuries from intense light.

• Brazing work should be carried out in a well-ventilated environment to prevent the accumulation of flux vapors or welding fumes.

4. Common FAQs

Q1: Porosity appears in the brazed joint. What causes this and how can it be solved?

A: The main causes include oil contamination, moisture, or oxide scale on the joint surface, insufficient flame combustion, or damp brazing filler metal.

Solutions:

• Thoroughly clean oil, dirt, and oxidation from the joint before brazing

• Use dry, properly stored brazing rods

• Adjust the flame to a neutral flame to ensure complete combustion

• When brazing refrigeration piping, introduce nitrogen purging to protect the joint

Q2: Slag inclusions appear in the brazed joint. Will this affect sealing performance, and how should it be handled?

A: Yes. Slag inclusions create voids in the joint, reducing both sealing performance and mechanical strength.

Causes:

• Flux not fully melted

• Inadequate or delayed cleaning after brazing

Solutions:

• Select a flux compatible with the filler metal

• Control heating temperature to ensure proper flux flow

• Rinse residual flux with hot water immediately after brazing

• Avoid uneven mixing of filler metal and flux

Q3: Incomplete penetration (filler metal does not fully fill the joint gap). How can this be improved?

A: This is usually caused by insufficient preheating, poor filler metal flow, or an improper joint clearance (too large or too small).

Solutions:

• Extend preheating time so the joint reaches the filler metal’s melting temperature

• Control joint clearance within 0.05–0.15 mm

• Place the filler metal close to the joint gap and allow it to melt from the heat of the base material, rather than melting it directly with the flame

Q4: Copper pipe deformation occurs after brazing, especially with thin-wall tubes. How can this be avoided?

A: The primary causes are excessive localized heating, overly high temperatures, or insufficient pipe fixation.

Solutions:

• Use circumferential, uniform heating rather than concentrating heat on one point

• Reduce dwell time at any single heating location

• Secure pipes firmly with fixtures before brazing to maintain alignment

• For thin-wall pipes, reduce flame intensity appropriately

Q5: Cracks appear in the brazed joint. What causes this and how can it be prevented?

A: Cracking is typically caused by rapid cooling, mismatched filler metal, or stress concentration at the joint.

Solutions:

• Allow the joint to cool naturally after brazing; avoid water quenching

• Select filler metal compatible with the copper pipe (e.g., phosphorus-copper filler for pure copper tubes)

• Improve joint fit-up accuracy before brazing to minimize residual stress

Q6: The brazing filler metal flows excessively and does not remain in the joint. How can this be controlled?

A: This usually results from excessive heating temperature or adding filler metal too early.

Solutions:

• Strictly control heating temperature and add filler metal only when the joint turns dull red

• Add filler metal in small amounts, gradually, to avoid overfeeding

• Slightly adjust pipe orientation during brazing to guide the filler metal into the joint gap

Summary

Proper copper pipe installation is not a single operation, but a systematic process involving accurate measurement, stable cutting, correct bending, thorough deburring, and controlled soldering or brazing.
