ASTM B381/B348 General Titanium Forging TC4 TA1 TA2 TC11 TC6
Titanium forgings (TC4，TA1，TA2，TC11，TC6) are high-performance parts formed by forging processes, offering exceptional strength, corrosion resistance, and physical properties.

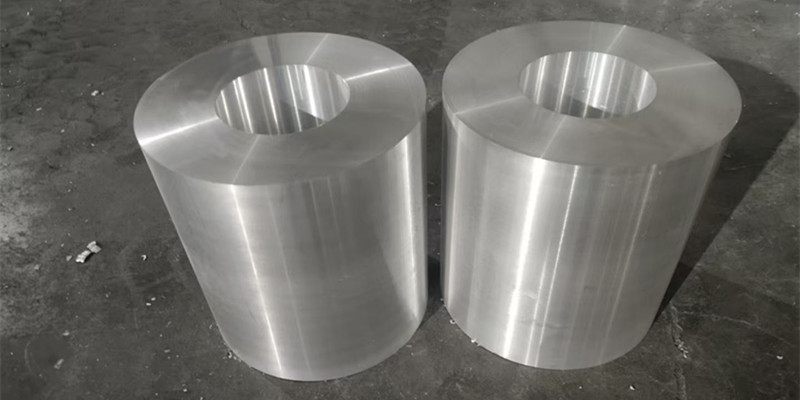

Shenzhen Chinalcometal has Titanium Forged Block, Titanium Forged Disk,Titanium Forged Ring ,They are widely used in critical applications across aerospace, military, chemical, and medical fields.
Material of titanium forgings
CN Grade | ASTM/ASME | ISO/EN/AMS Equivalent |
TA1 | Gr1 | ISO 5832-2, ASTM B348 |
TA2 | Gr2 | ASTM B381 Gr2 |
TC4 | Gr5 | AMS 4928, ISO 5832-3 |
TC4 ELI | Gr23 | ASTM F136 |
TC11 | Ti-6.5Al-3.5Mo-1.5Zr | Non-standardized |
TC6 | Ti-6Al-2.5Mo-1.5Cr | — |
Dimensions of titanium forgings
Shape | Size Range Example |
Forged Block | L: 40–6000 mm, W: 40–2000 mm, H: 20–1200 mm |
Forged Disk | Dia: φ40–φ3000 mm, Thickness: 20–1000 mm |
Forged Shaft | Dia: φ40–φ1000 mm, Length: 100–6000 mm |

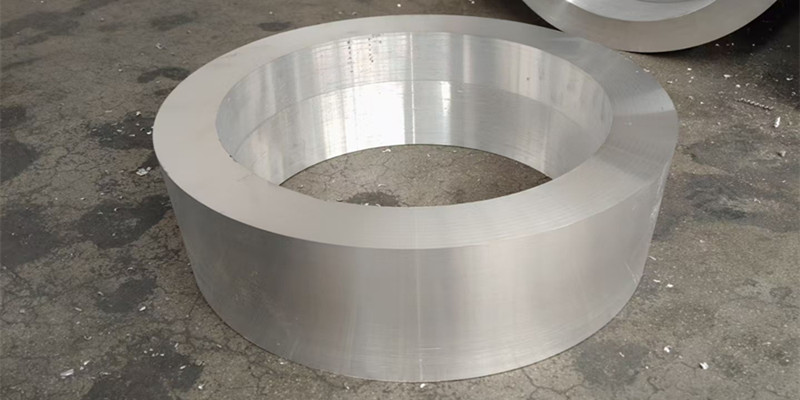

Forged Ring | Outer Dia: φ200–φ3000 mm, Thickness: 30–500 mm |
Products of titanium forgings
Product Name | Standard Ref | Titanium Grade | Typical Size | Application Field |
Titanium Flange | ASTM B381 / ASME SB-381 | TA2 / Gr2 | φ150–φ800 mm, 30–200 mm thick | Petrochemical, heat exchangers |
Medical Forging Blank | ASTM F136 | TC4ELI / Gr23 | φ20–φ100 mm, L: 100–600 mm | Medical implants |
Engine Ring Part | AMS 4928 | TC4 / Gr5 | φ200–φ1500 mm, 50–300 mm thick | Aerospace |
Pump Body Block | ASTM B348 / B381 | TA2 / Gr2 | 600×600×300 mm | Marine, chemical |
Nut Blank | ISO 5832-3 | TC4 / Gr5 | φ40–φ120 mm | Aerospace fasteners |
Special Advantages of Titanium forgings (TC4，TA1，TA2，TC11，TC6)
High Strength-to-Weight Ratio
Comparable strength to steel with only 60% of the weight
Excellent Corrosion Resistance
Resistant to seawater, acids, alkalis, chloride; ideal for harsh environments
High Temperature Performance
Grades like TC11 maintain performance at 400–500°C
Biocompatibility
TA grades are non-toxic and non-magnetic, ideal for medical implants
Superior Mechanical Properties
Forging enhances density, structure uniformity, fatigue and toughness
Application of Titanium forgings
Military:
Applications: Missile shells, pressure-resistant submarine shells, military aircraft parts
Products: Titanium bearing housings, fuselage rings, tail nozzle forged rings
Aerospace:
Applications: Landing gear, turbine blades, structural frames, engine connectors
Products: TC4 forged rings, titanium shafts, forged blade roots
Petrochemical:
Applications: Heat exchanger tube sheets, reactor heads, flanges for corrosive environments
Products: TA2 tube sheets, titanium heads, titanium cross joints
Vacuum Salt Production / Desalination:
Applications: Valve bodies, pump housings, condenser components
Products: TA1/TA2 forged valves, inlet/outlet flanges, condenser connectors
Medical Equipment:
Applications: Surgical implants, instrument holders
Products: TC4 hip joint blanks, screws, instrument sleeves
