How do you clean aluminum tread plate?

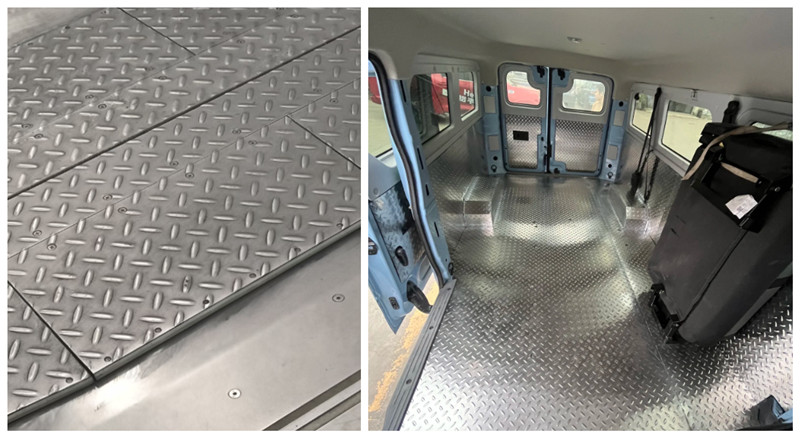

Aluminum tread plate, also known as checker plate or diamond plate, is a versatile material used across a wide range of industries and everyday environments. Thanks to its lightweight nature, durability, and anti-slip properties, it's commonly found in places where both safety and aesthetics matter. You'll often see aluminum tread plates in vehicle flooring and fenders, stair treads, loading docks, walkways, and ramps.
In residential and commercial spaces, they're popular for garage flooring, toolboxes, and decorative wall panels. From industrial plants to marine environments and public transportation vehicles, aluminum tread plate plays a crucial role in providing grip, protecting surfaces, and enhancing visual appeal. Given its widespread use, regular cleaning is essential to maintain its functionality and shine. So, how do you clean aluminum tread plate effectively? Let's break it down step by step.
How to Clean Aluminum Tread Plate?
1. Why Clean Aluminum Tread Plate?
Maintain Appearance: Aluminum tread plates have a shiny surface that easily shows dust and stains. Regular cleaning helps preserve their visual appeal.
Prevent Corrosion: Although aluminum is naturally corrosion-resistant, dirt and moisture buildup can lead to oxidation or staining over time, affecting durability.
Ensure Slip Resistance: The tread patterns are designed to enhance grip. Accumulated dirt can reduce this anti-slip effect, especially in wet or oily environments.
2. Tools and Materials Needed
Cleaning Tools: Soft-bristled brush, broom, mop, cloth, sponge, plastic squeegee.
Cleaning Solutions: Warm water, mild detergent (like dish soap or multi-purpose cleaner), white vinegar or lemon juice (for oxidation), specialized aluminum cleaner (for tough stains).
Additional Items: Spray bottle, bucket, rubber gloves.
3. Step-by-Step Cleaning Process
Pre-Cleaning:
Sweep or vacuum the surface to remove dust, sand, and debris, paying extra attention to the grooves in the tread pattern.
Prepare the Cleaning Solution:
Mix warm water with a few drops of mild detergent. For areas with heavy grease or oil, add a small amount of white vinegar or use a degreaser.
Scrub the Surface:
Dip a soft-bristled brush or sponge into the solution and scrub along the tread pattern to remove dirt, ensuring the grooves are cleaned thoroughly.
Rinse Thoroughly:
Rinse the surface with clean water to remove all cleaning residue and avoid streaking or water spots.
Dry and Polish:
Use a plastic squeegee or dry cloth to remove excess water and prevent water stains. For extra shine, apply a small amount of aluminum polish with a clean cloth.
4. Dealing with Stubborn Stains
Oil Stains: Apply warm water mixed with degreaser or vinegar to soften the grease before scrubbing.
Oxidation: Use an aluminum-specific oxidation remover, or gently rub the surface with a 1:1 mixture of vinegar and water.
Rust Spots: For minor rust spots, lightly sand the area with fine-grit sandpaper, then apply a protective coating.
5. Regular Maintenance Tips
Cleaning Frequency: Clean once a month for regular environments and once a week in industrial settings.
Protective Measures: Applying a protective wax or specialized coating can help reduce oxidation and dirt accumulation.
Avoid Common Mistakes: Never use steel wool, harsh chemicals, or abrasive cleaners, as these can scratch the surface or cause unwanted chemical reactions.
Except cleaning aluminum tread plates, you might want to know how to polish,cut and bend tread plate?Let us breakdown answers of these fabrication and maintenance questions.
How to Polish Aluminum Tread Plate
Polishing tread plate is less common than with flat sheet, as the raised pattern is functional by design. However, surface brightening and oxidation removal are routine maintenance tasks.
For light cleaning and mild oxidation, an aluminum-specific polish (such as Mothers Mag or Flitz) applied with a soft cloth is sufficient. Work in small sections and follow the grain direction of the base metal, not the tread pattern.
For heavier oxidation or surface staining, start with a 320-grit wet/dry sandpaper to remove discoloration, then step up to 400 and 600 grit before finishing with a polish compound. Always sand with water lubrication to avoid heat buildup.
Avoid steel wool, wire brushes, or abrasive pads not rated for aluminum — these leave iron particles embedded in the surface that cause rust staining over time. Do not use strongly alkaline cleaners, as they will etch and dull the aluminum surface.
If a mirror finish is required on the flat (back) side, progression through 400 / 800 / 1500 grit followed by a buffing wheel with white rouge compound will achieve a bright finish. The tread face cannot realistically be brought to a mirror finish due to the raised pattern geometry.
How to Cut Aluminum Tread Plate
Aluminum tread plate cuts cleanly with standard metal fabrication equipment. The tread pattern adds slight surface irregularity but does not significantly affect cutting performance.
Circular saw / cold saw: Use a non-ferrous aluminum-specific carbide blade (triple-chip or high-tooth-count). Apply a cutting wax or light oil to the blade. Feed speed should be steady — too slow causes built-up edge (BUE) on the blade; too fast causes burring. Always clamp the sheet firmly before cutting.
Angle grinder / cut-off disc: Suitable for straight cuts and trimming on site. Use a thin aluminum-rated disc. Keep the disc moving to avoid localized heat buildup, which can cause the aluminum to seize onto the disc.

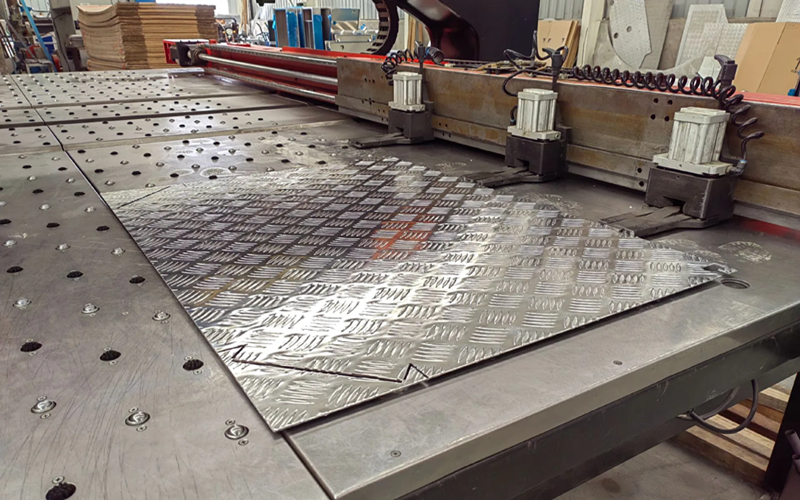

Shearing / guillotine: Suitable for straight cuts on thinner gauges (typically up to 6 mm depending on shear capacity). Position the tread face down against the shear bed for a cleaner edge.
Jigsaw / band saw: Best option for curved or irregular cuts. Use a fine-tooth bi-metal blade with a slow orbital setting.
Plasma / laser cutting: Both are applicable for production environments. Laser cutting delivers the cleanest edge and tightest tolerances on tread plate up to approximately 10 mm. Plasma is faster for thicker sections but leaves a wider heat-affected zone.
After cutting, deburr all edges with a file or deburring tool. Cut edges are sharp — edge protection or a chamfer is recommended for flooring applications.
How to Bend Aluminum Tread Plate
Aluminum tread plate can be cold bent, but the raised pattern and the strain-hardened H114 temper require slightly more attention than bending standard flat sheet of the same alloy.
General principle: Always bend with the tread face on the outside of the bend (in tension). Bending with the tread face on the inside (in compression) concentrates stress at the base of the tread ribs and significantly increases the risk of cracking.
Minimum bend radius: As a general guideline for H114 tread plate, allow a minimum inside bend radius of 1.5× to 2× the sheet thickness. Tighter radii are possible on 5052-H114 (softer alloy) than on 5754-H114 or 5083-H114. Always confirm with a test piece before production bending.
Press brake bending: The standard method for straight bends. Use a radius punch — never a sharp V-die that creates a crease. Apply even, controlled pressure. For thicker plate (6 mm and above), a larger radius punch and slower press speed reduce cracking risk.
Springback: Aluminum has higher springback than mild steel. Overbend by approximately 2–5° depending on alloy and thickness, then allow the material to spring back to the target angle. Exact compensation should be established by trial on each thickness and alloy combination.
Pre-heating: For tight bends on 5083-H114 or 5754-H114 plate, gentle pre-heating to 150–200 °C improves ductility and reduces cracking risk. Do not exceed 200 °C to avoid altering the temper properties. After bending, allow to air-cool naturally.
Score-and-bend / folding box method: Not recommended for tread plate. The tread pattern creates uneven stress concentration at the score line.
If cracking occurs during bending, the cause is typically one of the following: bend radius too tight, tread face positioned on the inside of the bend, or the material is at the harder end of the H114 property range. Switching to a slightly softer base temper (request O or H111 base before tread rolling) can resolve persistent bending issues for complex fabrications.
For material specifications, stock availability, and custom cut-to-size service, contact Shenzhen Chinalcometal. We not only supply 5000 series, but also 1000, 3000, 6000 series aluminum tread plates.
