Is Titanium Lighter Than Aluminum?

When it comes to selecting materials for engineering, aerospace, automotive, or even consumer goods, weight, strength, and hardness are often at the forefront of decision-making. Titanium and aluminum are two prominent metals that are frequently compared due to their widespread applications and distinctive properties. This article delves into three key aspects: density, physical strength, and hardness, to answer the question: is titanium lighter than aluminum? Let’s explore.

Is titanium denser then aluminum?

The density of a material is a fundamental property that determines how much mass is contained within a given volume. This characteristic is crucial for applications where weight reduction is critical, such as aerospace and automotive design.

Density Data

• Aluminum: The density of aluminum is approximately 2.70 g/cm³.

• Titanium: The density of titanium is approximately 4.51 g/cm³.

From these values, it’s evident that titanium is nearly 67% heavier than aluminum for the same volume. For instance, a one-liter block of aluminum would weigh about 2.7 kilograms, while the same volume of titanium would weigh approximately 4.51 kilograms.

In summary, aluminum is lighter than titanium based on density alone.

Which metal is stronger? Aluminum or Titanium

While density gives us an idea of weight, physical strength reveals how well a material can withstand forces without deforming or breaking. Engineers often examine tensile strength and yield strength when comparing materials.

Tensile and Yield Strength Data

• Aluminum: Depending on the alloy, aluminum’s tensile strength typically ranges from 70 to 700 MPa (megapascals). Common aerospace alloys like 7075 have a tensile strength around 572 MPa.

• Titanium: Titanium alloys, such as Ti-6Al-4V (a common aerospace alloy), exhibit tensile strengths ranging from 900 to 1,200 MPa.

Yield Strength Comparison

Yield strength indicates the stress at which a material begins to deform plastically:

• Aluminum: Yield strength ranges between 30 and 500 MPa, depending on the alloy.

• Titanium: Yield strength is higher, typically between 800 and 1,100 MPa for aerospace-grade titanium.

In summary, titanium is stronger than aluminum, particularly when considering tensile and yield strength.

Is titanium harder than aluminum?

Hardness is another critical property, indicating a material’s resistance to indentation, scratching, or wear. This attribute is especially important for components exposed to abrasive environments or heavy wear.

Hardness Data

Hardness is often measured using the Vickers or Brinell scales:

• Aluminum: Pure aluminum has a Brinell hardness of approximately 15 HB. However, aerospace-grade alloys like 7075 can reach around 150 HB.

• Titanium: Titanium alloys typically have a Brinell hardness of 200 to 400 HB, depending on the specific alloy and heat treatment.

In summary, titanium is harder than aluminum, making it better suited for high-wear applications.

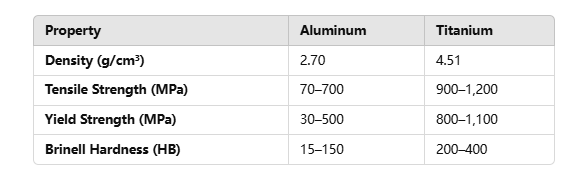

Comparative Data Sheet

Conclusion: Aluminum vs. Titanium

When comparing titanium and aluminum, each metal has distinct advantages depending on the requirements:

For general-purpose applications, aluminum is often the preferred choice due to its lightweight and cost-effectiveness. It is widely used in products like beverage cans, car parts, and household appliances. Titanium, on the other hand, is favored for applications requiring higher strength and wear resistance, such as medical devices and certain industrial components.

In aerospace and aviation, the choice becomes more nuanced. When faced with the need for lightweight materials that also offer high strength, specific alloys are chosen based on the application:

• Aluminum Alloys:

• High-strength aerospace-grade aluminum alloys such as 7075, 7050, 7175, 7475, and 7055 are commonly used. These alloys are ideal for manufacturing airframes, wing structures, and fuselage components where weight reduction is critical without compromising structural integrity.

• Titanium Alloys:

• Aerospace-grade titanium alloys like Ti-6Al-4V, Ti-5553 are used in jet engines, landing gear, and structural parts of spacecraft. These alloys are chosen for their exceptional strength-to-weight ratios, corrosion resistance, and ability to withstand extreme temperatures.

By understanding the strengths and limitations of both aluminum and titanium, engineers and designers can make informed decisions, ensuring optimal performance, durability, and cost-effectiveness for their projects. Both materials are invaluable in driving innovation across industries, particularly in challenging and high-performance environments.
