What is Composition and Properties of Ti-6Al-4V Titanium Alloy?
Titanium alloys are widely used in modern engineering due to their excellent combination of strength, low density, and corrosion resistance. Among them, Ti-6Al-4V is the most commonly used titanium alloy, accounting for more than half of global titanium alloy applications. It is extensively employed in aerospace, automotive, marine, and biomedical industries where high performance and reliability are required.
What Is the Composition of Titanium Materials?
Titanium materials can be classified into commercially pure titanium and titanium alloys. Commercially pure titanium mainly consists of titanium with trace amounts of oxygen, nitrogen, carbon, hydrogen, and iron. It offers excellent corrosion resistance and biocompatibility but has relatively moderate strength.
Titanium alloys are developed by adding alloying elements to improve mechanical properties and service performance. Common alloying elements include aluminum (Al), vanadium (V), molybdenum (Mo), chromium (Cr), iron (Fe), and tin (Sn). These elements influence phase stability, strength, toughness, and heat resistance.
Based on their microstructure, titanium alloys are generally divided into three categories:
Alpha (α) titanium alloys
Beta (β) titanium alloys
Alpha-beta (α+β) titanium alloys
Among these categories, Ti-6Al-4V is the most representative α+β titanium alloy.
What Is Ti-6Al-4V?
Ti-6Al-4V, also known as Grade 5 titanium, is an alpha-beta titanium alloy containing approximately 6% aluminum and 4% vanadium, with the balance being titanium.
Typical chemical composition:
| Element | Content (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 5.5–6.75 |
| Vanadium (V) | 3.5–4.5 |
| Iron (Fe) | ≤0.40 |
| Oxygen (O) | ≤0.20 |
| Carbon (C) | ≤0.08 |
| Nitrogen (N) | ≤0.05 |
| Hydrogen (H) | ≤0.015 |
Aluminum acts as an alpha stabilizer and improves strength and elevated-temperature performance. Vanadium acts as a beta stabilizer and enhances ductility and toughness. The combination of these elements provides an excellent balance of strength, corrosion resistance, and machinability.
Ti-6Al-4V Properties
Ti-6Al-4V is known for its high specific strength, excellent fatigue resistance, and outstanding corrosion resistance. Its typical physical and mechanical properties are listed below.
| Property | Value |
| Yield Strength | 880–950 MPa |
| Ultimate Tensile Strength | 950–1,100 MPa |
| Modulus of Elasticity | 16.5–17.0 Msi (approximately 16,500–17,000 ksi) |
| Density | 4.43 g/cm³ |
| Weight | 0.160 lb/in³ |
| Melting Point | 1,600–1,660°C (2,912–3,020°F) |
| Hardness | 30–36 HRC |
| Thermal Conductivity | 6.7 W/m·K |
| Poisson's Ratio | 0.34 |
Compared with steel, Ti-6Al-4V has nearly half the density while maintaining high strength. This advantage makes it an ideal material for weight-sensitive applications such as aircraft structures and high-performance automotive components.
Popular Products of ti-6al-4v Titanium

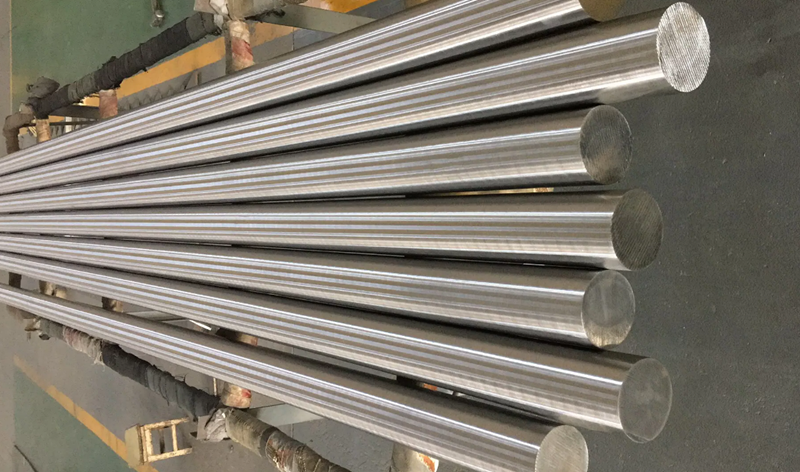

Titanium 6Al-4V Grade 5 Titanium bar
Titanium Grade | |||
Diameter | 2mm -30mm;30mm-100mm; | ||
Length | 1000mm -3000mm; 1000mm-3500mm | ||
Tolerance | H6,H7,H8,H9 | ||
Mechanical properties | Tensile strength/MPa | Yield strength at 0.2% offset /MPa | Elongation in 50.8mm or 4D %l.t. |
Up to 50.8mm | 931 | 862 | 10 |
50.8-101.6mm | 896 | 827 | 10 |
101.6-152.4mm | 896 | 827 | 10 |
Titanium Ti-6Al-4V Grade 5 plate sheet
| Titanium Grade | AMS4911 Titanium Ti-6AL-4V Grade 5 Plate Sheet |
| Thickness | 0.5mm-120mm |
| Width | 1000-4000mm |
| Length | 1000-6000mm |
What Is Titanium Ti-6Al-4V Used For?
Ti-6Al-4V is used in industries where weight reduction, mechanical strength, corrosion resistance, and fatigue performance are critical requirements.
Aerospace Industry
The aerospace sector is the largest consumer of Ti-6Al-4V. The alloy is used in airframe structures, landing gear components, compressor blades, engine casings, and fastening systems. Its high specific strength helps reduce aircraft weight while maintaining structural integrity.
Medical Industry
Ti-6Al-4V is one of the most widely used biomaterials. It is commonly found in hip replacements, knee implants, dental implants, spinal fixation devices, and surgical instruments. Its excellent biocompatibility allows long-term implantation in the human body.
Automotive Industry
High-performance and racing vehicles use Ti-6Al-4V for connecting rods, valves, suspension springs, exhaust systems, and other lightweight components. The material improves vehicle performance by reducing overall weight.
Marine Industry
The alloy offers outstanding resistance to seawater corrosion. It is used for propeller shafts, marine fasteners, underwater equipment, and offshore platform components.
Oil and Gas Industry
Ti-6Al-4V performs well in corrosive environments and under high pressure. It is used in valves, pumps, drilling equipment, and subsea systems.
Industrial Manufacturing
Many industrial systems utilize Ti-6Al-4V for heat exchangers, chemical processing equipment, pressure vessels, and precision mechanical components where corrosion resistance and reliability are essential.
Consumer Products
The alloy is also found in premium consumer goods, including watches, eyewear frames, bicycle components, sporting equipment, and outdoor gear. Its lightweight nature and attractive appearance make it a popular choice for high-end products.
Process Characteristics of Ti-6Al-4V
Ti-6Al-4V exhibits several distinctive processing characteristics.
High Strength-to-Weight Ratio
The alloy combines low density with high mechanical strength. Components can achieve significant weight reduction without sacrificing structural integrity.
Excellent Corrosion Resistance
A stable titanium oxide film forms naturally on the material surface. This passive layer provides excellent resistance to seawater, chlorides, acids, and many aggressive environments.
Outstanding High-Temperature Performance
Ti-6Al-4V maintains good mechanical properties at temperatures up to approximately 400°C. This makes it suitable for compressor components, engine parts, and aerospace structures.
Good Fatigue Resistance
The alloy performs well under cyclic loading conditions. It is widely used in aircraft landing gear components, turbine parts, and medical implants that experience repeated stress.
Superior Biocompatibility
Ti-6Al-4V is non-toxic and highly compatible with human tissue. It is commonly used in orthopedic implants, dental implants, and surgical instruments.
Machining Challenges of Ti-6Al-4V
Although Ti-6Al-4V offers excellent performance, it is considered a difficult-to-machine material.
Low Thermal Conductivity
Heat generated during cutting remains concentrated near the cutting edge rather than dissipating through the workpiece. This accelerates tool wear and increases cutting temperatures.
High Chemical Reactivity
At elevated temperatures, titanium tends to react with cutting tool materials. This can cause adhesion, built-up edge formation, and premature tool failure.
High Strength at Elevated Temperatures
Unlike many metals, Ti-6Al-4V retains substantial strength even under machining temperatures. Cutting forces remain relatively high throughout the process.
Low Elastic Modulus
The alloy has a lower modulus of elasticity than steel. Workpieces can deflect during machining, leading to dimensional inaccuracies and vibration.
How to Machine Ti-6Al-4V?
To improve machining efficiency and surface quality, several strategies are commonly adopted.
Use Sharp Cutting Tools
Carbide, coated carbide, and polycrystalline diamond (PCD) tools are frequently used. Sharp cutting edges help reduce cutting forces and heat generation.
Optimize Cutting Parameters
Moderate cutting speeds and higher feed rates are generally preferred. Excessive cutting speed can significantly reduce tool life.
Apply High-Pressure Coolant
High-pressure coolant systems improve heat dissipation and chip evacuation. They help maintain stable cutting conditions and extend tool life.
Reduce Tool Overhang
Shorter tool extensions increase rigidity and minimize vibration during machining operations.
Employ Advanced Machining Methods
High-speed machining, trochoidal milling, and adaptive toolpath strategies can improve productivity while reducing thermal load on cutting tools.
Conclusion
Ti-6Al-4V has earned its position as the industry's most widely adopted titanium alloy. From aircraft structures to medical implants, it delivers reliable performance in applications where conventional materials may fall short. While machining remains technically challenging, continuous improvements in tooling, cooling systems, and process optimization have made efficient production increasingly achievable. These developments continue to support the alloy's growing role in modern manufacturing.
