2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar
What is 2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar
2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar is known as the “aircraft alloy” in machining rod. It is one of the most popular alloys for cold heading and roll threading applications. It has high strength and excellent fatigue resistance. It is excellent on parts where good strength –to-weight ratio is needed. Machinability is good in heat treated and annealed condition. Commonly used in aircraft structural components, truck wheels, medical instruments, and screw machine products. We stock 2024-T3,2024-T351, 2024-T3511, and 2024-T4.
Available shapes: Rounds
Tempers: 2024-T3,2024-T351, 2024-T3511, and 2024-T4.
Specifications: ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

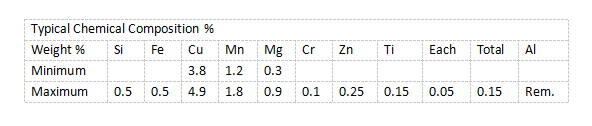

Chemical Composition 2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar

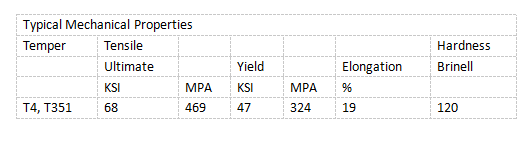

Mechanical Properties 2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar
Stock list of 2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar
Alloy | Temper | Dia.(mm) | Length(mm) |
2024(2A12) | T4 | 2.5 | 2500/3000 |
2024(2A12) | T4 | φ3 | 2500/3000 |
2024(2A12) | T4 | 3.5 | 2500/3000 |
2024(2A12) | T4 | φ4 | 2500/3000 |
2024(2A12) | T4 | 4.5 | 2500/3000 |
2024(2A12) | T4 | φ5 | 2500/3000 |
2024(2A12) | T4 | 5.5 | 2500/3000 |
2024(2A12) | T4 | φ6 | 2500/3000 |
2024(2A12) | T4 | 6.5 | 2500/3000 |
2024(2A12) | T4 | φ7 | 2500/3000 |
2024(2A12) | T4 | 7.5 | 2500/3000 |
2024(2A12) | T4 | φ8 | 2500/3000 |
2024(2A12) | T4 | 8.5 | 2500/3000 |
2024(2A12) | T4 | φ9 | 2500/3000 |
2024(2A12) | T4 | φ10 | 2500/3000 |
2024(2A12) | T4 | φ11 | 2500/3000 |
2024(2A12) | T4 | φ12 | 2500/3000 |
2024(2A12) | T4 | φ13 | 2500/3000 |
2024(2A12) | T4 | φ14 | 2500/3000 |
2024(2A12) | T4 | φ15 | 2500/3000 |
2024(2A12) | T4 | φ16 | 2500/3000 |
2024(2A12) | T4 | φ17 | 2500/3000 |
2024(2A12) | T4 | φ18 | 2500/3000 |
2024(2A12) | T4 | φ19 | 2500/3000 |
2024(2A12) | T4 | φ20 | 2500/3000 |
2024(2A12) | T4 | φ21 | 2500/3000 |
2024(2A12) | T4 | φ22 | 2500/3000 |
2024(2A12) | T4 | φ23 | 2500/3000 |
2024(2A12) | T4 | φ24 | 2500/3000 |
2024(2A12) | T4 | φ25 | 2500/3000 |
2024(2A12) | T4 | φ26 | 2500/3000 |
2024(2A12) | T4 | φ27 | 2500/3000 |
2024(2A12) | T4 | φ28 | 2500/3000 |
2024(2A12) | T4 | φ29 | 2500/3000 |
2024(2A12) | T4 | φ30 | 2500/3000 |
Application of 2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar
2024 T3 T4 Cold drawing Aluminum aircraft alloy rod bar are commonly used in aircraft structural components, truck wheels, medical instruments, and screw machine products.
l Aerospace industry: Aluminum aircraft structures.
l Transportation equipment manufacturing: Aluminum lightweight components.
l Mechanical engineering: Aluminum various parts.
