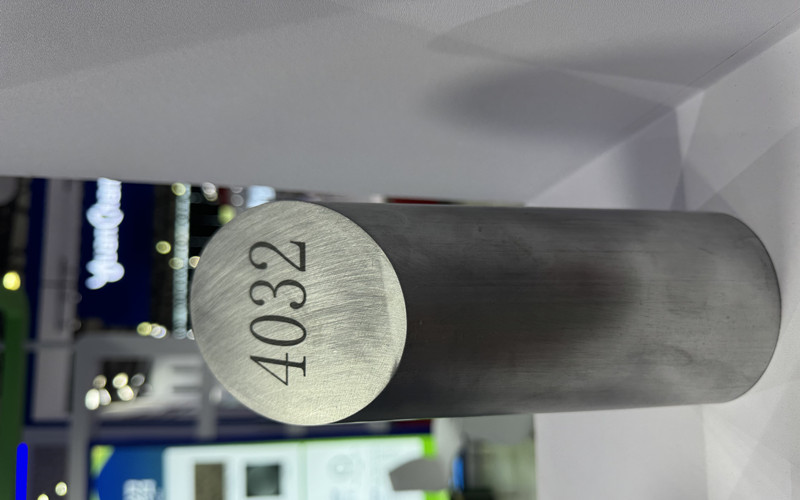

4032 T1 AMS 4318 Motorsport Aluminum Round Bar
4032 T1 AMS 4318 Aluminum Round Bar is a high-strength aluminum-silicon alloy widely used in the racing industry. With excellent wear resistance, thermal stability, and lightweight performance, this 4032 aluminum material is ideal for motorsport components like pistons and connecting rods. The AMS 4318 round bar ensures precision and durability under extreme engine conditions, making it a trusted choice for high-performance applications.
Key Characteristics of AMS 4318 4032-T1 Round Bar
High Strength & Wear Resistance:Ideal for high-friction parts like pistons and gears.
Thermal Stability:Performs reliably under extreme engine temperatures.
Moderate Ductility:Allows limited forming and machining without cracking.
Good Machinability:Easy to machine with oil-based lubricants.
Corrosion Resistance:Resists corrosion, but may pit in harsh environments.
4032 T1 Aluminum Round bar Chemical Composition
Element | Composition (%) |
Aluminum (Al) | Balance |
Chromium (Cr) | 0.1 max |
Copper (Cu) | 0.5 – 1.3 |
Iron (Fe) | 1.0 max |
Magnesium (Mg) | 0.8 – 1.3 |
Nickel (Ni) | 0.5 – 1.3 |
Remainder (Each) | 0.05 max |
Remainder (Total) | 0.15 max |
Silicon (Si) | 11.0 – 13.5 |
Zinc (Zn) | 0.25 max |
Mechanical Properties AMS 4318 4032 T1 Aluminum Round bar
Property | Value | Unit |
Tensile Strength | 380 - 415 | MPa |
Yield Strength | 275 - 310 | MPa |
Elongation at Break | 8-12 | % |
Brinell Hardness | 110 - 120 | HB |
Density | ~2.68 | g/cm3 |
Elastic Modulus | 71 | GPa |
Thermal Conductivity | ~120 | W/m.K |
Electrical Conductivity | ~30 - 35 | % IACS |
Stock list of 4032 T1 Aluminum Round bar
Alloy | Temper | Dia.(mm) | Length(mm) |
4032 | T1 | 10 | 2500/3000 |
4032 | T1 | 15 | 2500/3000 |
4032 | T1 | 20 | 2500/3000 |
4032 | T1 | 25 | 2500/3000 |
4032 | T1 | 30 | 2500/3000 |
4032 | T1 | 35 | 2500/3000 |
4032 | T1 | 40 | 2500/3000 |
4032 | T1 | 45 | 2500/3000 |
4032 | T1 | 50 | 2500/3000 |
4032 | T1 | 55 | 2500/3000 |
4032 | T1 | 60 | 2500/3000 |
4032 | T1 | 65 | 2500/3000 |
4032 | T1 | 70 | 2500/3000 |
4032 | T1 | 75 | 2500/3000 |
4032 | T1 | 80 | 2500/3000 |
4032 | T1 | 85 | 2500/3000 |
4032 | T1 | 90 | 2500/3000 |
4032 | T1 | 95 | 2500/3000 |
4032 | T1 | 100 | 2500/3000 |
4032 | T1 | 110 | 2500/3000 |
4032 | T1 | 120 | 2500/3000 |
4032 | T1 | 130 | 2500/3000 |
4032 | T1 | 140 | 2500/3000 |
4032 | T1 | 150 | 2500/3000 |
4032 | T1 | 160 | 2500/3000 |
4032 | T1 | 170 | 2500/3000 |
4032 | T1 | 180 | 2500/3000 |
Applications of AMS 4318 4032 T1 Aluminum Round Bar
AMS 4318 4032 T1 Aluminum Round Bar is widely used in the racing industry due to its high strength, wear resistance, and thermal stability. In motorsport, it is a go-to material for 4032 aluminum pistons, connecting rods, and cylinder liners—components that must endure extreme heat and friction under high RPMs. Its superior performance under stress makes it ideal for high-performance engines in both professional and amateur racing. Beyond motorsport, 4032 aluminum is also used in aerospace applications for load-bearing structures that require a balance of strength and weight. In industrial machinery, it serves in precision parts exposed to high wear conditions, benefiting from its durability and machinability.
