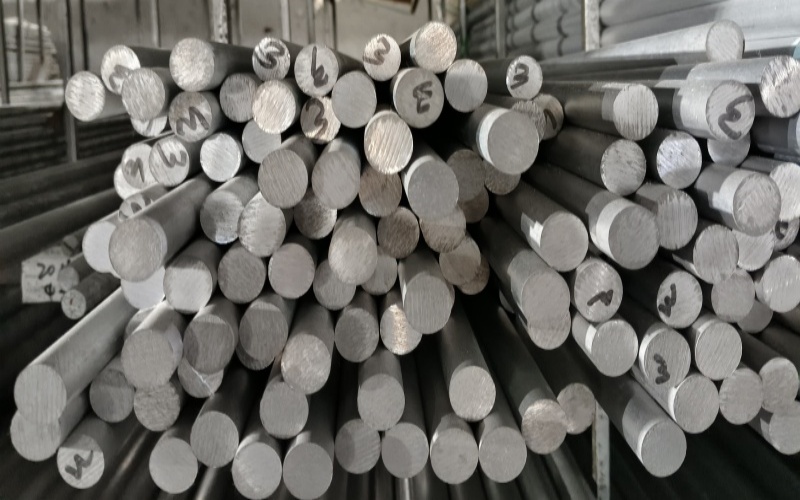

AMS 4118 Aircraft Aluminum Rod Bar 2017 T4
Aluminium Alloy 2017 T4 (2017 A) has high strength with excellent fatigue strength. Alloy 2017 T4 also has very good machining characteristics. It is suitable for welding only by resistance welding. Alloy 2017 (2017 A) T4 is used for various applications from high strength structural components, aircraft, machine construction, military equipment, rivets.
Aluminium Alloy 2017 T4 (2017 A) Specifications:
UNS A92017
ASTM B211 and ASTM B316
FED QQ-A-225/5 Bar, Rod and Wire
FED QQ-A-430 Wire and Rivets
AMS 4118 Bar, Rod and Wire 2017-T4 cold finished
Stock list
Rod Bar | Diameter | Length |
2017 T4 | 10mm/12mm13mm//14mm/15mm | 2500mm/3000mm |
2017 T4 | 16mm/18mm/20mm/22mm/24mm | 2500mm/3000mm |
2017 T4 | 25mm/28mm | 2500mm/3000mm |
2017 T4 | 30mm/32mm | 2500mm/3000mm |
2017 T4 | 35mm/38mm | 2500mm/3000mm |
2017 T4 | 40mm/42mm/45mm | 2500mm/3000mm |
2017 T4 | 50mm/55mm | 2500mm/3000mm |
2017 T4 | 60mm/65mm | 2500mm/3000mm |
2017 T4 | 70mm/75mm | 2500mm/3000mm |
2017 T4 | 80mm/85mm | 2500mm/3000mm |
2017 T4 | 90mm/95mm | 2500mm/3000mm |
2017 T4 | 100mm/105mm | 2500mm/3000mm |
2017 T4 | 110mm/120mm | 2500mm/4200mm |
2017 T4 | 130mm/140mm | 2500mm/4200mm |
2017 T4 | 150mm/160mm | 2500mm/3000mm |
2017 T4 | 170mm/180mm | 2500mm/3000mm |
2017 T4 | 190mm/200mm | 2500mm/3000mm |
2017 T4 | 230mm/250mm/300mm | 2500mm |
AMS 4118 aircraft Aluminum rod bar 2017 T4 Applications:
Aerospace components
Automotive components
Fasteners
Rivets
High strength components
Structural components
