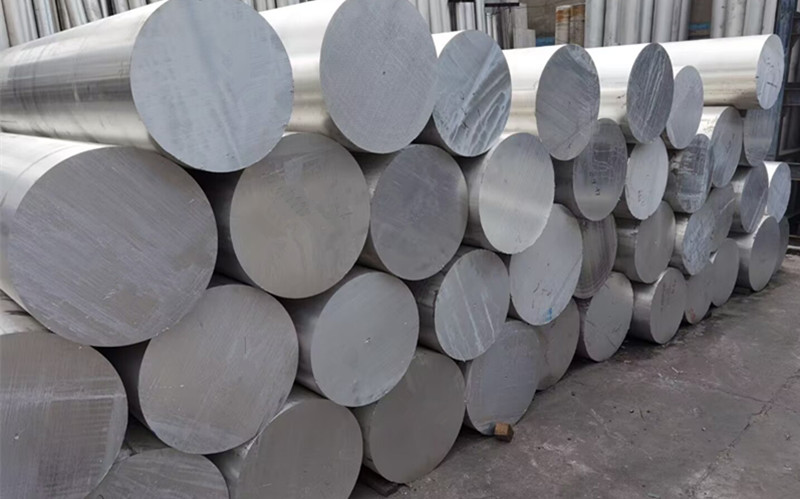

7068 T6 T6511 T76511 Extruded Aluminum Round Bar AMS4331 AMS2772
7068 aluminum round bar is an outstanding choice for industries that require extreme strength and lightweight materials, such as aerospace, defense, automotive, marine, and sports equipment manufacturing. Its superior mechanical properties, excellent corrosion resistance, and good machinability make it a go-to material for high-performance components.
Available shapes: Round bars,Flat bars
Tempers: T6, T651, T76511
Standards: AMS 4331, AMS 2772
Sizes of 7068 aluminum round bar
Alloy | Temper | Dia.(mm) | Length(mm) |
7068 | T6511 | φ5-φ260 | 2500/3000/6000 |
7068 | T6 | Φ5-φ460 | 2500/3000/6000 |
7068 | T76511 | φ5-φ260 | 2500/3000 |
7068 aluminum Chemical Composition
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Si | — | 0.12 |
| Fe | — | 0.15 |
| Cu | 1.6 | 2.4 |
| Mn | — | 0.10 |
| Mg | 2.2 | 3.0 |
| Cr | — | 0.05 |
| Zn | 7.3 | 8.3 |
| Ti | — | 0.10 |
| Each | — | 0.05 |
| Total | — | 0.15 |
| Al | — | Rem. |
Mechanical Properties of 7068 T6 T6511 T76511 Aluminum Round Bar
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| T6 / T6511 | 683 | 655 | 5 |
| T76 / T76511 | 593 | 552 | 7 |
Key Features of 7068 aluminum bar
Superior Strength: 7068 aluminum offers extremely high strength, with yield strength up to about 700 MPa, significantly higher than 7075.
Corrosion Resistance: It provides excellent corrosion resistance, making it suitable for outdoor and marine environments.
Machinability: It is easy to machine, weld, and form, making it ideal for complex component fabrication.
Anodising: It responds well to anodizing, producing a more wear-resistant surface under hard anodizing.
Application of 7068 T6 T6511 T76511 Aluminum Round Bar
The 7068 aluminum alloy is widely used in applications requiring lightweight, high-strength materials that also offer good corrosion resistance. Some common sectors and uses include:
Defense and Military:
Aircraft and Aerospace: Ideal for aircraft structural components, particularly those where high strength is needed, such as aircraft fuselage or wing structures.
Armor: 7068 is used for lightweight armor plates that need to be stronger and lighter than traditional steel armor.
Automotive:
For applications in the automotive industry where weight reduction and high strength are needed, such as in high-performance vehicle components, chassis, or brake systems.
Sports and Recreation:
Used in high-end bicycles, sporting goods (e.g., golf clubs, bike frames), and motorcycle parts that require both high strength and reduced weight.
Industrial Equipment:
7068 is specified for critical industrial equipment where strength and weight are important, such as crane components, robotic arms, or machine tool components.
Marine:
Used in the marine industry for high-stress parts like hull frames, propeller shafts, and structural components exposed to saltwater environments.
Aerospace:
7068 is gaining traction in aerospace applications where the need for lightweight yet strong materials is critical for achieving fuel efficiency and performance.
