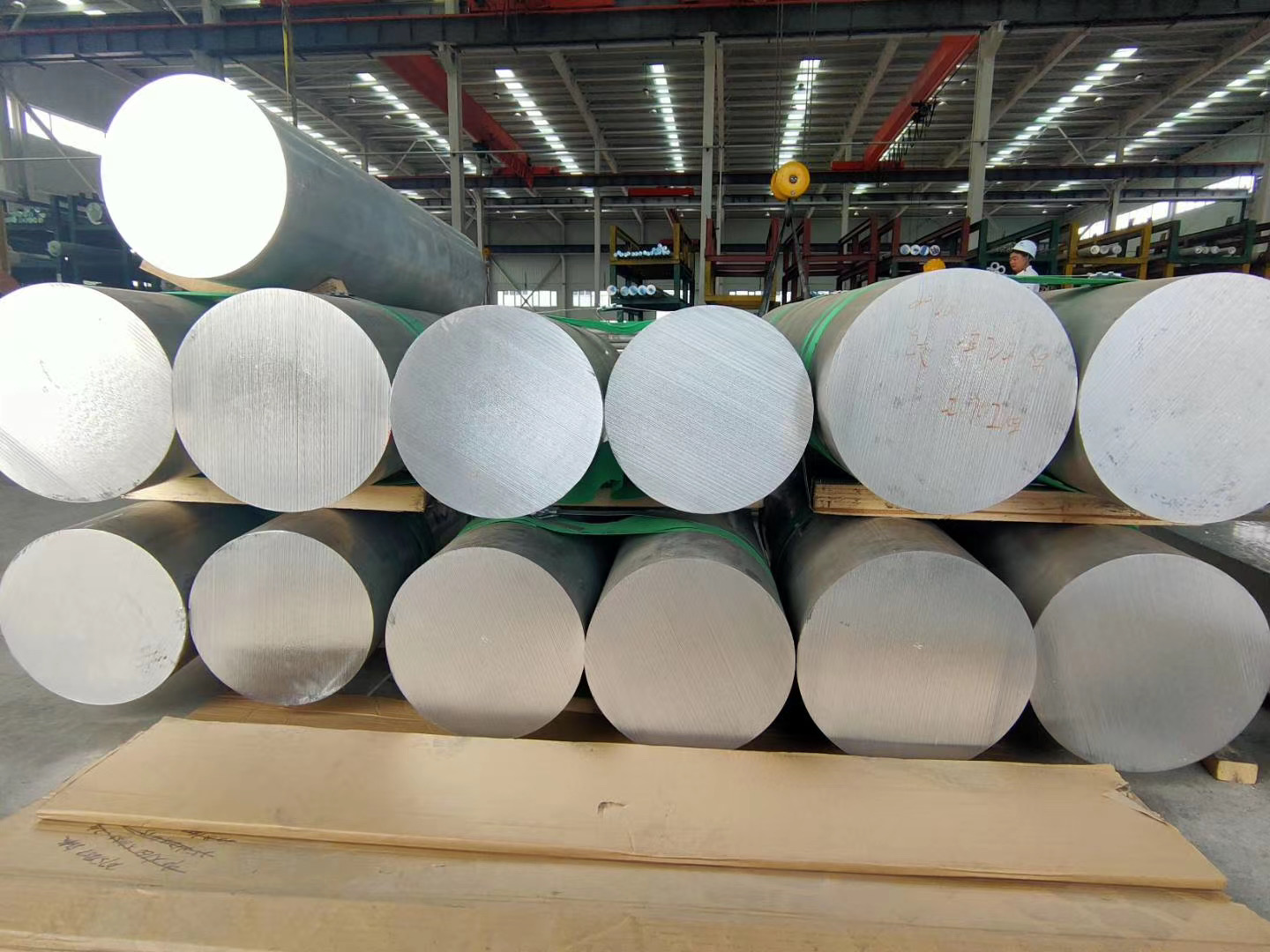

Extruded Aluminum rod bar 5A06 H112

5A06 H112 Aircraft Aluminum rod Bar is a high-strength, corrosion-resistant aluminum alloy material primarily used in aerospace, shipbuilding, and other applications requiring lightweight and high strength.

Alloy Composition:

5A06 aluminum alloy belongs to the Al-Mg series. The primary alloying element is magnesium, typically in the range of 5.8%–6.8%, with additional elements such as manganese (0.5%–0.8%) and titanium (0.02%–0.10%), and the balance being aluminum.

Temper Description:

The H112 temper indicates that the material has been hot worked (such as by extrusion) but not subjected to further heat treatment. It achieves a certain level of strength and performance through minor cold working after hot processing.

Mechanical Properties:

• Tensile strength: ≥315 MPa

• Yield strength: ≥155 MPa

• Elongation: ≥15%

• Density: ≈2.8 g/cm³

Key Characteristics:

5A06 offers excellent corrosion resistance, particularly in marine and humid atmospheric environments. It also has outstanding weldability, suitable for TIG and MIG welding, with high joint strength and minimal welding defects. The alloy provides good workability and can be readily formed through extrusion, stretching, and other mechanical processes.

Applications:

5A06 H112 aluminum round bars are widely used in the aerospace industry for components such as aircraft fuselage and wing beams, as well as in shipbuilding for hull structures and decks. They are also used in automotive manufacturing, bridge components, and pipeline fittings where both high strength and corrosion resistance are essential.

Stock list of Extruded Aluminum rod bar 5A06 H112

Available shapes: Flats, squares and rounds

Tempers: H112
