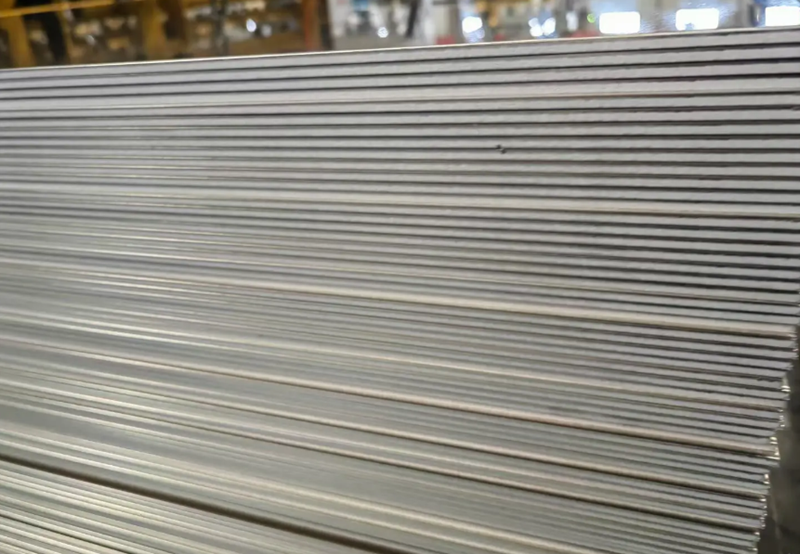

Grade 9 Ti-3Al-2.5V Titanium Plate Sheet
What is grade 9 titanium?
Grade 9 titanium, also known as Ti-3Al-2.5V, is a near-alpha titanium alloy offering a balanced combination of strength, corrosion resistance, and formability. Its properties lie between the commercially pure titanium grades (Grades 1-4) and high-strength titanium alloys like Grade 5 (Ti-6Al-4V). Grade 9 is particularly valued in applications requiring higher strength than CP titanium but with better weldability and formability than Grade 5.
· ASTM B265
· ASME SB265
Size of Grade 9 Ti-3Al-2.5V Titanium Plate Sheet
Category | Dimension Range |
Thickness | Plates: 4 mm --50 mm |
Sheets: 0.4 mm --4 mm | |
Width | 1000 mm (39.37 inches) |
1220 mm (48.03 inches) | |
1500 mm (59.05 inches) | |
2600 mm (102.36 inches) | |
Length | 2000 mm (78.74 inches) |
2440 mm (96.06 inches) | |
3000 mm (118.11 inches) | |
4000 mm (157.48 inches) | |
6000 mm(236.22 inches) |
Chemical Composition of Grade 9 Ti-3Al-2.5V Titanium Plate Sheet
Element | Content (%) |
Titanium (Ti) | Balance |
Aluminum (Al) | 2.5 - 3.5 |
Vanadium (V) | 2.0 - 3.0 |
Iron (Fe) | 0.25 max |
Oxygen (O) | 0.15 max |
Carbon (C) | 0.08 max |
Nitrogen (N) | 0.03 max |
Hydrogen (H) | 0.015 max |
Mechanical Properties of Grade 9 Ti-3Al-2.5V Titanium Plate Sheet
Property | Value |
Tensile Strength | 620 MPa (minimum) |
Yield Strength | 483 MPa (minimum) |
Elongation | 15% (minimum) |
Density | 4.48 g/cm³ |
Hardness | ~250HV |
Modulus of Elasticity | ~105 GPa |
Applications of Grade 9 Ti-3Al-2.5V Titanium Plate Sheet
Aerospace Industry
Hydraulic tubing and structural components in aircraft.
Lightweight and corrosion-resistant parts in airframes.
Exhaust systems for improved durability and weight reduction.
Automotive Industry
High-performance and luxury vehicle components.
Racing car exhaust systems and suspension parts for weight reduction and strength.
Marine Applications
Corrosion-resistant structures for offshore and underwater operations.
Seawater piping and heat exchangers.
Medical Field
Surgical instruments and implants due to biocompatibility.
Lightweight prosthetics and orthopedic devices.
Sports Equipment
Premium bicycle frames and components due to high strength-to-weight ratio.
Golf club shafts and other sporting gear requiring lightweight durability.
Industrial Applications
Heat exchangers and condenser tubing for chemical and petrochemical industries.
Power generation components exposed to corrosive environments.
Energy Sector
Tubing for geothermal and hydrocarbon exploration.
Components in renewable energy systems, such as wind turbines.
