Gr2 Titanium Welded Tubes Coils Customized
What is a titanium welded tube?
Titanium welded tubes are manufactured from cold-rolled titanium strip or titanium sheet coils (titanium strip/coil) rather than being produced by drilling or extrusion from solid titanium bars. In industrial production, the most commonly used materials include commercially pure titanium grades such as Grade 1 and Grade 2, as well as corrosion-resistant alloys like Grade 7 and Grade 12 for specific service environments. These titanium strip and coil materials are typically supplied in accordance with ASTM B265 / ASTM B265M standards, ensuring uniform chemical composition, precise thickness control, and excellent surface quality. Such characteristics make titanium strip and coil particularly suitable for continuous forming and welding processes. As a result, Grade 2 titanium welded tubes are almost exclusively produced from ASTM B265-compliant titanium strip or coil materials.

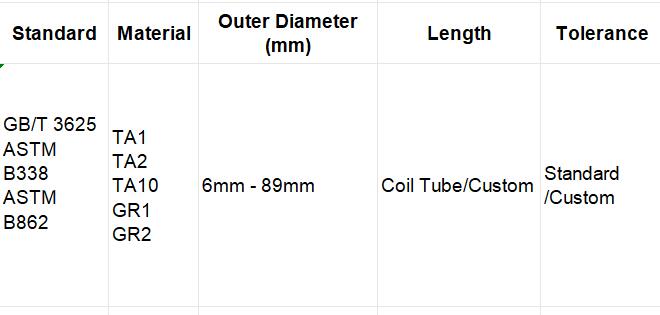

Detailed Technical Specifications
Gr2 titanium welded tube / coil
| Item | Specification |
|---|---|
| Material Grade | ASTM Grade 2 (UNS R50400) |
| Product Type | Titanium Welded Tube / Titanium Coil |
| Manufacturing Process | Cold Forming + TIG Welding / Laser Welding |

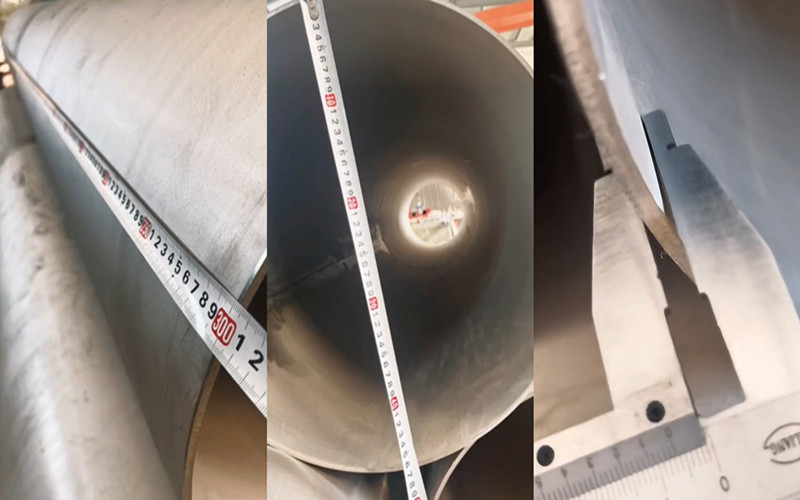

| Outside Diameter (OD) | 6 – 1200 mm |
| Wall Thickness (WT) | 0.3 – 25 mm |
| Length | Random length or fixed length (up to 12 m) |
| Coil Type | Straight tube / Helical coil / U-bend / Custom shape |
| Surface Finish | Pickled / Polished / Bright Annealed |
| Heat Treatment Condition | Annealed (optional stress relief) |
| Weld Quality | Fully penetrated weld seam, 100% inspected |
| Straightness | In accordance with ASTM tolerances |
| Non-Destructive Testing | Eddy Current / Ultrasonic / Radiographic (optional) |
| Delivery Condition | Annealed, pickled, and straightened |
Standards & Quality Assurance
Our Grade 2 titanium welded tubes and coils are manufactured and tested in strict accordance with international standards:
ASTM B862 – Titanium and Titanium Alloy Welded Pipe
ASTM B338 – Seamless and Welded Titanium Tubes for Heat Exchangers
ASME SB862 / SB338
EN 10204 3.1 Mill Test Certificate available
ISO 9001 Quality Management System

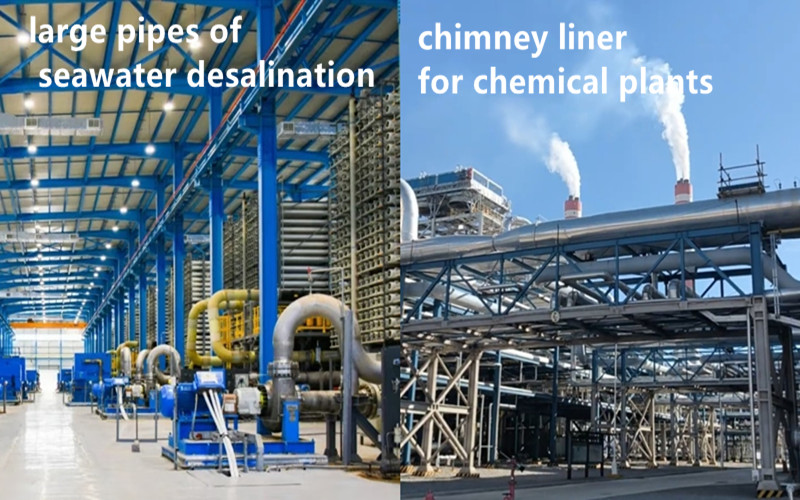

Titanium welded tubes applications
Gr2 titanium welded tubes and coils are widely used in industries requiring excellent corrosion resistance and long-term durability:
Heat exchangers – for efficient thermal transfer in industrial and power systems
Condensers – suitable for steam condensation and cooling applications
Chemical processing equipment – resistant to aggressive chemicals and corrosive environments
Power plants – used in piping systems exposed to high temperature and pressure
Desalination systems – ideal for seawater handling and saltwater corrosion environments
Marine engineering – suitable for offshore and shipbuilding applications
Oil & gas facilities – for pipelines and equipment in harsh service conditions
Other industrial systems – for critical piping, fluid transfer, and thermal management applications
Customization capability
We specialize in customized titanium welded tubing solutions for demanding industrial applications.
Custom options include:
Non-standard OD & wall thickness
Long-length tubes or precision cut-to-length

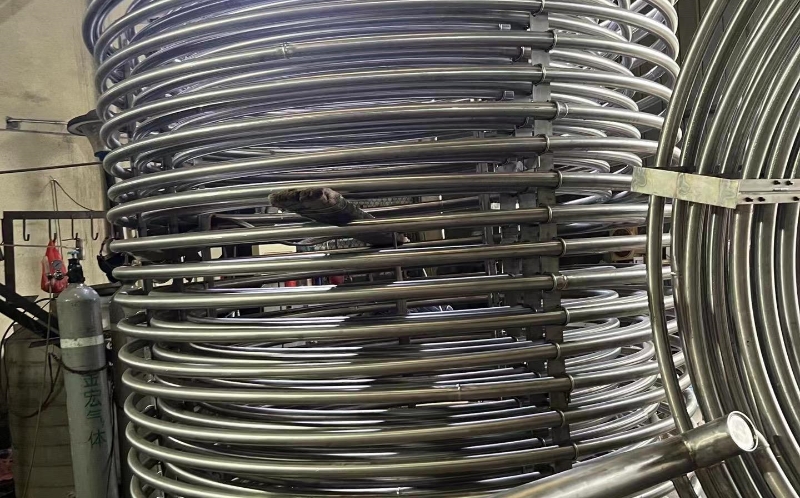

Titanium tube coils for heat exchangers and condensers
U-bent tubes, spiral coils, multi-radius forming
Special surface finishes for corrosive environments
Tight dimensional tolerance control
ChinalcoMetal titanium welded tube manufacturing process
ChinalcoMetal titanium welded tubes are manufactured using a series of precise and controlled processes to ensure high weld quality, dimensional accuracy, and long-term performance:
Raw Material – High-quality titanium strip or coil (Grade 2)
Tube Forming – Cold rolling to form the tube with precisely aligned edges for welding
Welding – TIG (GTAW) or laser welding under high-purity argon protection to ensure dense, stable weld seams
Weld Finishing & Straightening – Post-weld shaping, inner seam treatment, and multi-pass straightening to ensure roundness, wall thickness uniformity, and straightness
Heat Treatment (Annealing) – Vacuum or protective atmosphere annealing to relieve stress, restore ductility, and enhance corrosion resistance
Non-Destructive Testing (NDT) & Final Inspection – Eddy current, ultrasonic, radiographic, and pressure tests to verify weld integrity and dimensional accuracy
Standards Compliance – Manufacturing and inspection meet ASTM / ASME requirements
Applications – Suitable for heat exchangers, chemical equipment, power plants, desalination systems, and other critical industrial applications
