Compare large diameter aluminum tube and titanium pipe
Large-diameter titanium and aluminum tubes are widely used in aerospace, deep-sea engineering, nuclear power, and high-rise construction. Let's explore their unique processing challenges, casting methods, and application-specific performance requirements.
Processing large-diameter aluminum tube and titanium pipe surely face many challenges.
Material Characteristics
Aluminum's soft, adhesive nature causes tool wear and poor surface finish during machining, while its high thermal expansion and conductivity increase the risk of deformation and stress if heat is not managed evenly.
Titanium's high strength, low thermal conductivity, and chemical reactivity lead to rapid tool wear and heat buildup, while its work hardening tendency makes further machining increasingly difficult.
Large Size Challenges
Large-diameter thin-walled aluminum tubes often vibrate during machining due to low rigidity, require complex clamping to prevent deformation, and are prone to uneven wall thickness from inconsistent cutting forces
Large-diameter titanium tubes are sensitive to residual stress and heat buildup, making them prone to deformation or burning, and require powerful, rigid machines with advanced cooling systems to ensure stable processing.
Processing Efficiency and Cost
Aluminum chips easily entangle cutting tools, causing frequent interruptions, while the large material removal volume in big tubes results in low efficiency and extended machining time.
Titanium’s low cutting speeds, high tool wear, and costly raw material lead to low machining efficiency and high overall processing costs.
Forging Process Comparison: Large-Diameter Aluminum vs. Titanium Tubes
Large-diameter aluminum tubes are typically forged using hot extrusion or rotary forging, benefiting from aluminum’s good plasticity and relatively low deformation resistance. These processes allow for efficient shaping, lower energy consumption, and high productivity. Aluminum forgings also cool quickly, reducing cycle time.
In contrast, forging large-diameter titanium tubes is more challenging due to titanium’s high strength, low thermal conductivity, and strong reactivity. It requires strict temperature control (usually in the β or α+β phase field), slow deformation rates, and high-force presses. Specialized dies and inert gas protection may be needed to avoid contamination and ensure structural integrity.
Applications: Large-Diameter Titanium Tubes vs. Aluminum Tubes

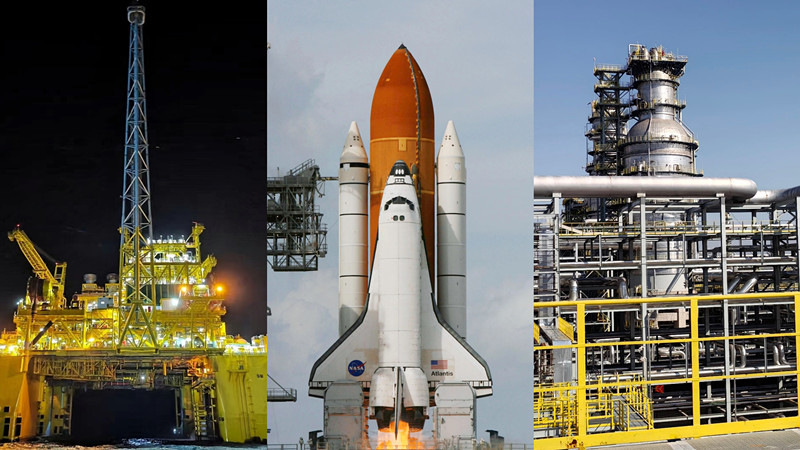

1. Large-Diameter Titanium Tubes (Typically ≥300mm)
(1) Deep Sea and Ultra-Deepwater Engineering
Subsea Oil & Gas Riser Pipes: Titanium alloys resist high pressure (>1000m depth) and H₂S corrosion, replacing traditional steel pipes.
Deep-Sea Mining Equipment: Used in lift systems, resisting seawater corrosion and mineral abrasion.
(2) Ultra-Large Aerospace Structures
Rocket Fuel Tanks (Diameter ≥5m): Titanium's low-temperature toughness (-196°C) ensures safe storage of liquid hydrogen/oxygen.
Satellite Propellant Lines: Large-diameter thin-walled titanium tubes (<3mm wall) enable lightweight, radiation-resistant solutions.
(3) Nuclear and Supercritical Power Systems
Gen-IV Reactor Main Loop Piping: High-temperature resistance (600°C+), and neutron embrittlement resistance.
Supercritical Thermal Power Steam Pipes: Replaces P91 steel to solve high-temperature creep issues.
(4) Large-Scale Chemical Equipment
1-Million-Ton PTA Reactor Systems: Titanium pipe arrays (1.5m+ diameter) resist acetic acid and bromide corrosion.

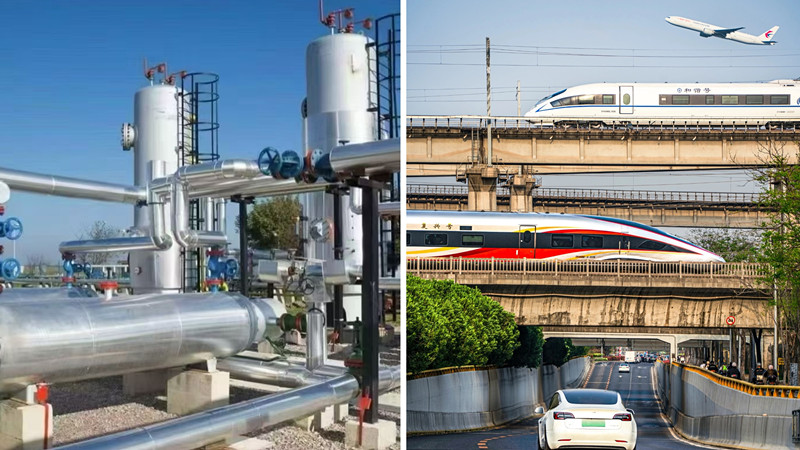

2. Large-Diameter Aluminum Tubes (Typically ≥500mm)
(1) Super-High-Rise Buildings & Long-Span Structures
Wind-Resistant Cores in Skyscrapers (Diameter 2m+): 6061-T6 aluminum alloy tubes reduce structural weight by over 30%.
Airport Terminal Roof Trusses: Large aluminum tubes (10–15mm wall) support open, column-free spaces.
(2) Large-Scale New Energy Transportation
Liquid Hydrogen Tanker Trailers (Diameter 3m+): Aluminum alloys offer explosion-proof design and are 40% lighter than stainless steel.
Solar Tracker Main Beams: 800mm-diameter aluminum tubes support kilometer-scale PV arrays.
(3) High-Speed Transit Giant Components
Maglev Track Beam Structures: Large aluminum tubes (20mm wall) ensure both electromagnetic shielding and lightweight performance.
All-Aluminum Ship Masts: 1.2m+ diameter 5083 aluminum tubes replace traditional steel mast structures.
(4) UHV Power Transmission Projects
±1100kV HVDC Conductor Tubes: 1.5m aluminum tubes achieve overhead light-weighting and anti-corona corrosion performance.
