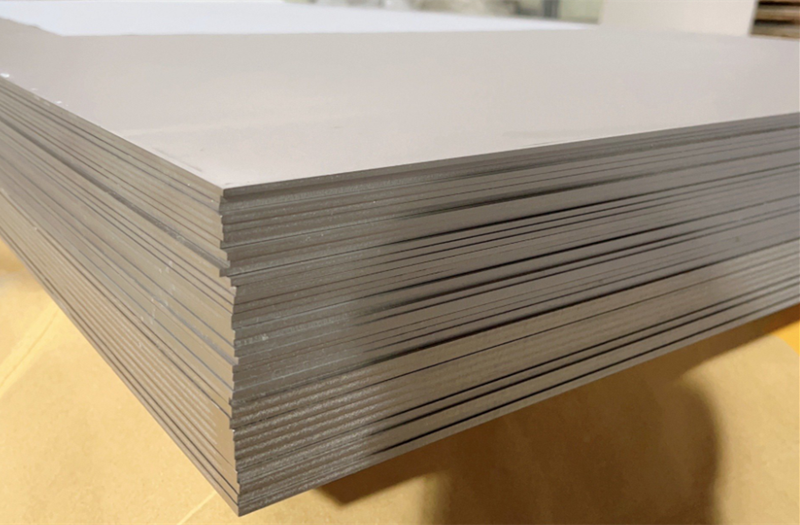

AMS 4900 Pure Titanium TA3 Grade 3 CP3 Plate Sheet
Grade 3 Titanium is a commercially pure titanium grade, offering a balance of strength, ductility, and corrosion resistance. It is less commonly used compared to Grades 1 and 2 but is chosen for applications requiring higher strength while retaining good formability and corrosion resistance.
Size of Pure Titanium TA3 Grade 3 CP3 Plate Sheet
Category | Dimension Range |
Thickness | Plates: 6 mm --120 mm |
Sheets: 0.4 mm --6 mm | |
Width | 1000 mm (39.37 inches) |
1220 mm (48.03 inches) | |
1500 mm (59.05 inches) | |
2000 mm (78.74 inches) | |
Length | 2000 mm (78.74 inches) |
2440 mm (96.06 inches) | |
3000 mm (118.11 inches) | |
4000 mm (157.48 inches) | |
6000 mm(236.22 inches) |
Chemical Composition of Pure Titanium TA3 Grade 3 CP3
Element | Maximum Composition (%) |
Titanium (Ti) | Balance |
Iron (Fe) | 0.3 |
Carbon (C) | 0.1 |
Nitrogen (N) | 0.05 |
Hydrogen (H) | 0.015 |
Oxygen (O) | 0.35 |
Mechanical Properties of Pure Titanium TA3 Grade 3 CP3
Property | Value |
Tensile Strength | 450-550 MPa |
Yield Strength | 380-480 MPa |
Elongation | 20% (minimum) |
Density | 4.51 g/cm³ |
Hardness | ~200HV |
Why Choose Pure Titanium TA3 Grade 3 CP3 Plate?
· A step up in strength compared to Grades 1 and 2, without a significant loss in ductility.
· Versatile for applications where higher mechanical performance is required.
· Excellent long-term resistance in corrosive environments, reducing maintenance costs.
Typical Applications of Pure Titanium TA3 Grade 3 CP3 Plate
Chemical Processing:
Equipment such as heat exchangers, reactors, and piping systems requiring strength and corrosion resistance.
Marine Applications:
Components exposed to seawater, such as pumps and propeller shafts.
Aerospace and Automotive:
Structural components that demand a balance of strength and weight savings.
Medical Devices:
Non-implantable medical devices where biocompatibility is an asset.
Energy Sector:
Used in power plants and renewable energy systems due to its ability to withstand harsh operating conditions.
