Aluminum Tread Plate and Aluminum Checker Plate – Same or Not?

If you've ever browsed metal materials for flooring, toolboxes, trailers, or construction projects, you've likely come across two commonly used terms: aluminum tread plate and aluminum checker plate. But are they the same thing?

The answer is yes — aluminum tread plate and aluminum checker plate refer to the same product, just under different names depending on the region or industry. In the U.S., "tread plate" is more commonly used, while in the UK and some other countries, it's often called "checker plate." Some even refer to it as diamond plate, due to the raised diamond-shaped pattern on the surface.

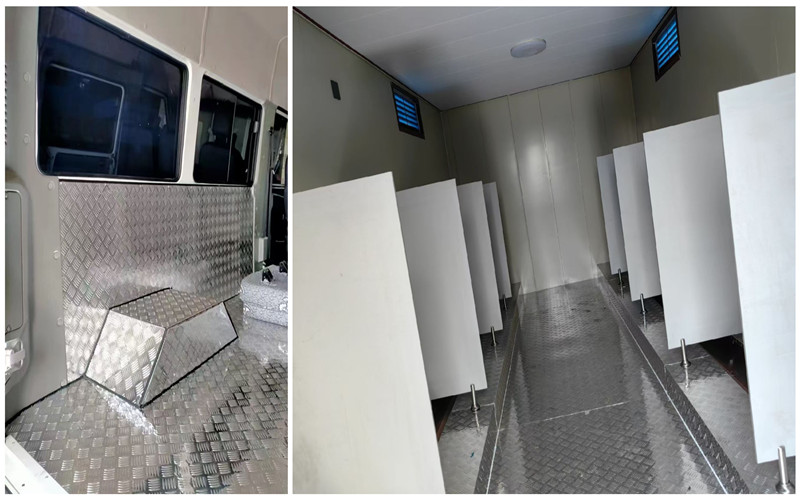

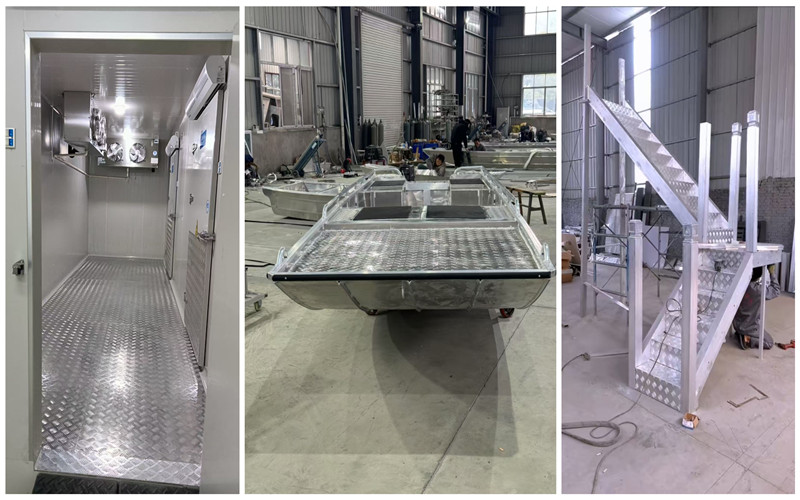

This patterned aluminum sheet is designed for anti-slip functionality, added strength, and visual appeal. It's lightweight, corrosion-resistant, and easy to work with, making it popular across various industries. You’ll find it used for truck beds, stair treads, catwalks, ship decks, trailer floors, and even kitchen walls.

Aluminum tread plate sheets patterns and alloys

The most common surface patterns include:

• 5 bar aluminum tread plate – raised bars aligned in a criss-cross pattern, often used for flooring and industrial platforms.

• Diamond tread aluminum plate – a single-line diamond shape that provides a stylish and skid-resistant surface.

How to choose aluminum alloys, which depends on your application:

• 3003 H22 aluminum tread plate is widely used due to its excellent corrosion resistance and formability, suitable for toolboxes, trailers, and interior surfaces.

• 6061 T6 aluminum tread plate offers higher strength and hardness, making it ideal for structural parts, truck steps, and marine equipment.

• 5052, 5754, and 5083 alloys provide marine-grade corrosion resistance and are preferred for ship decks and offshore applications.

• 4017 aluminum tread plate is another option with good formability and surface brightness, often used in decorative and functional designs.

We at Shenzhen Chinalco Metal supply a full range of tread plate materials, including aluminum tread plate sheets, coils, and custom-cut panels in both bright and black aluminum tread plate finishes.

Aluminum Tread Plate FAQs

Let's dive into some of the most frequently asked questions we hear from buyers and users of aluminum tread plates and checker plates.

1. Is Aluminum Checker Plate Better Than Stainless Steel?

It depends on the application. Aluminum checker plate is much lighter and more cost-effective than stainless steel, making it easier to install and transport. It also offers excellent corrosion resistance, especially in the 3003 and 5052 series, which makes it a good choice for marine and outdoor use.

However, stainless steel checker plate is stronger and more heat-resistant, which can be important in heavy-duty industrial or high-temperature environments. But it’s heavier and more expensive.

If weight and ease of use matter more, go with aluminum tread plate. If extreme durability and strength are top priorities, stainless steel might be the better fit.

2. How to Cut Aluminum Tread Plate?

Cutting aluminum tread plate is simple if you use the right tools. Here are a few options:

• Circular saw with a carbide-tipped blade – Great for straight cuts.

• Jigsaw with a fine-tooth blade – Best for curved or custom shapes.

• Angle grinder or plasma cutter – Suitable for thicker tread plates.

Always remember to wear protective gear and clamp the plate securely to avoid vibration. For thin aluminum tread plate sheet 4x8, you can even use hand shears or a nibbler.

3. How to Clean Aluminum Checker Plate?

To keep your aluminum checker plate looking good:

1. Use warm water and mild soap. Avoid harsh chemicals that may damage the surface.

2. Scrub gently with a soft brush to remove dirt or grime from the grooves.

3. Rinse thoroughly with clean water and dry with a soft cloth to avoid water spots.

For tougher stains, a mixture of vinegar and water or a commercial aluminum cleaner can help. Avoid steel wool or abrasive pads that can scratch the plate.

4. How to Polish Aluminum Tread Plate?

If you want that mirror-like shine on your polished aluminum tread plate, follow these steps:

1. Clean the surface first (see above).

2. Apply aluminum polish or a mixture of baking soda and water.

3. Use a microfiber cloth or buffing pad to polish in circular motions.

4. Buff off any residue with a clean cloth.

For larger areas, a power buffer can save you time and provide an even finish. Regular polishing helps maintain the bright appearance of tread brite aluminum diamond plate.

5. What’s the Difference Between 6061 and 3003 Tread Plate?

This is one of the most important questions for selecting the right material.

• 3003 aluminum tread plate is made with pure aluminum and manganese. It is softer, more malleable, and easier to bend or shape. It's commonly used in applications like trailer interiors, ramps, or decorative finishes.

• 6061 aluminum tread plate, on the other hand, is a heat-treatable alloy containing magnesium and silicon. It's stronger and better suited for structural or high-load applications like steps, catwalks, and marine fittings. It’s also more weldable and machine-friendly.

If you need something durable and easy to form, go with 3003. If your project needs high strength and toughness, 6061 is the better choice.

Whether you call it aluminum tread plate, aluminum checker plate, or diamond plate aluminum, you're talking about the same versatile and reliable product. Its unique texture, light weight, and resistance to corrosion make it a smart choice for industries ranging from transportation and construction to marine and aerospace.

At Shenzhen Chinalco Metal, we supply high-quality aluminum tread plates for sale in various sizes, patterns, and alloys, including 5 bar aluminum tread plate, 3003 H22, 6061 T6, and more. We also offer aluminum tread plate sheet 4x8, custom lengths, and surface finishes like bright or black aluminum tread plate to match your needs.Contact us today to get a quote or request samples
