The aluminum tube and rod production methods and extrusion advantages disadvantages
In modern industrial manufacturing, aluminum tubes and aluminum rods are widely used across aerospace, automotive, electronics, energy, construction, and general engineering applications. Their popularity comes from aluminum’s unique combination of low density, good mechanical strength, corrosion resistance, and excellent formability.
Despite their widespread use, aluminum tubes and rods are not produced in a single, universal way. Different production methods lead to significant differences in dimensional accuracy, surface quality, mechanical properties, production efficiency, and cost. Understanding how these products are manufactured is essential for engineers, designers, and procurement professionals when selecting the right aluminum material for a specific application.
This article provides a structured overview of the main production methods for aluminum tubes and aluminum rods, explains how each process works, and discusses their typical use cases. It then focuses on aluminum extrusion—a common manufacturing method shared by both tubes and rods—analyzing its advantages, disadvantages, and why it plays such a central role in aluminum product manufacturing today.
Aluminum Tube Production Methods
Aluminum tubes can be produced using several different manufacturing processes, depending on required dimensions, tolerances, mechanical properties, and end-use applications.

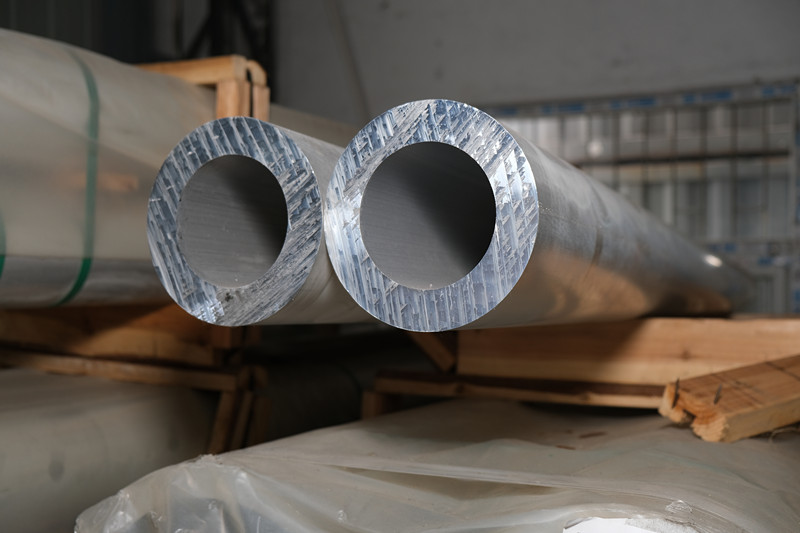

1. Extruded Aluminum Tubes
Extrusion is the most widely used method for producing aluminum tubes. In this process, heated aluminum billets are forced through a die with a circular or hollow profile. For hollow tubes, either a porthole die or a mandrel is used to form the internal diameter.
Extruded aluminum tubes are commonly used for structural components, heat exchangers, frames, and general-purpose applications. This method allows for a wide range of diameters, wall thicknesses, and alloy options, while maintaining good dimensional consistency.
2. Drawn Aluminum Tubes (Cold Drawing)
Cold drawing is typically a secondary process applied after extrusion. An extruded tube is pulled through a die—sometimes with a mandrel—to reduce diameter, improve dimensional accuracy, and enhance surface finish.
Drawn aluminum tubes offer tighter tolerances, smoother surfaces, and improved mechanical properties due to work hardening. This process is widely used for precision tubing, hydraulic systems, automotive components, and applications where dimensional accuracy is critical.
3. Seamless Aluminum Tubes (Piercing + Drawing)
Seamless aluminum tubes are produced by piercing a solid billet and then drawing or rolling it into a hollow tube. This method avoids weld seams entirely, resulting in uniform structure and consistent mechanical properties.
Seamless tubes are commonly used in high-pressure systems, aerospace, and critical fluid transport applications where reliability and structural integrity are essential.
4. Welded Aluminum Tubes
Welded aluminum tubes are manufactured by forming aluminum strip or sheet into a tubular shape and welding the seam, usually by TIG or high-frequency welding.
This method is cost-effective for large-diameter or thin-wall tubes but generally offers lower mechanical performance compared to seamless or extruded tubes. Welded tubes are often used in decorative, architectural, or low-pressure applications.
Aluminum Rod Production Methods
Aluminum rods are solid products and therefore follow slightly different production routes compared to tubes.

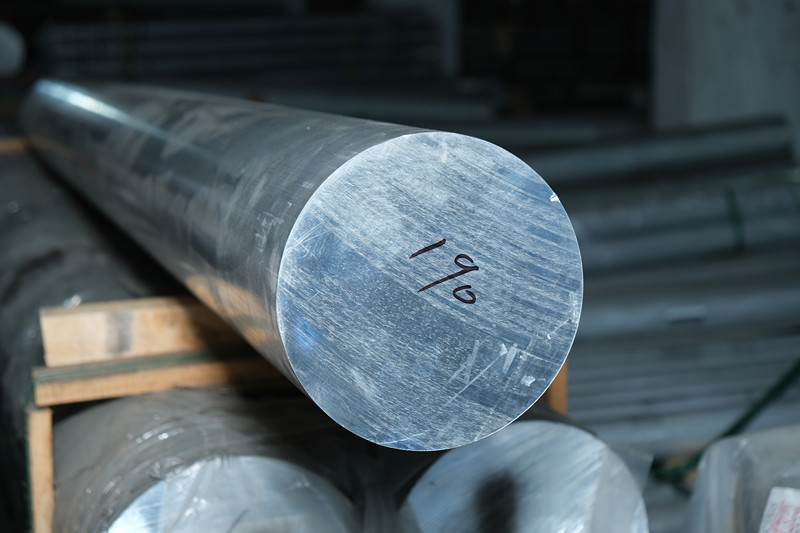

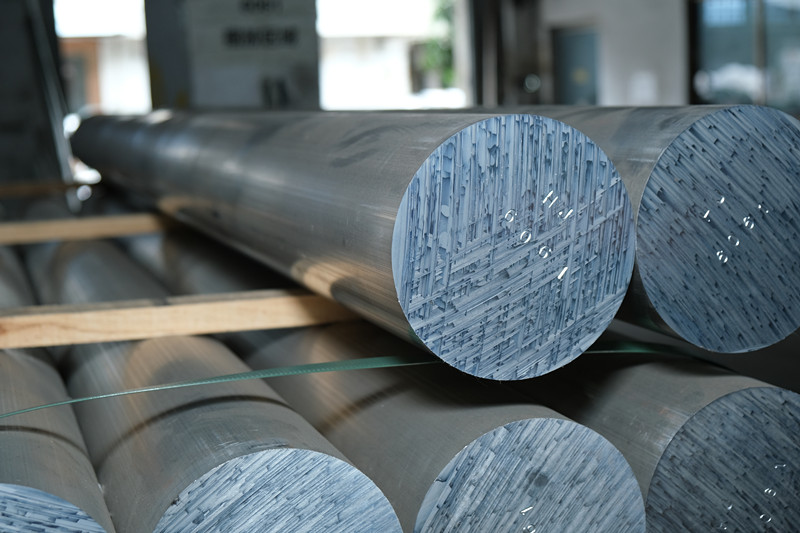

1. Extruded Aluminum Rods
Extrusion is one of the most common methods for producing aluminum rods. Heated billets are pushed through a solid round die to form rods of various diameters.
Extruded aluminum rods offer good dimensional consistency and are suitable for structural, mechanical, and machining applications. This method supports a wide range of alloys and allows for efficient large-scale production.
2. Rolled Aluminum Rods
In rolling, aluminum is passed through a series of rollers to gradually reduce its cross-section and form rods. This process is typically used for larger diameters or specific alloy systems.
Rolled rods often exhibit good internal structure and uniform grain flow, making them suitable for forging or further machining operations.
3. Drawn Aluminum Rods
Similar to tube drawing, aluminum rods can be cold drawn through dies to achieve tighter tolerances and improved surface finish.
Drawn rods are commonly used for precision components, fasteners, and parts that require accurate dimensions and consistent mechanical properties.
4. Cast Aluminum Rods
Casting involves pouring molten aluminum into molds to form rods directly. While this method is less expensive, cast rods typically have inferior mechanical properties and internal defects compared to extruded or drawn products.
Cast aluminum rods are usually limited to non-critical applications or further processing steps.
Extrusion: A Common Production Method for Aluminum Tubes and Rods
Among all production methods, aluminum extrusion stands out as a shared and highly versatile process for both aluminum tubes and aluminum rods. Its widespread use is driven by flexibility, efficiency, and the ability to produce complex cross-sections.
Extruded rods are also used in high-strength applications such as aerospace and defense. A typical example is the extruded aluminum round bar in 7068 alloy , which demonstrates excellent mechanical properties for demanding environments.
How Aluminum Extrusion Works
In aluminum extrusion, a preheated billet is placed into a container and forced through a steel die under high pressure. The aluminum flows plastically through the die opening, taking on the desired cross-sectional shape.
For tubes, specialized dies with mandrels or portholes create hollow profiles. For rods, solid dies are used to form round or shaped bars. After extrusion, the product is cooled, stretched for straightness, cut to length, and often heat-treated to achieve the required temper.
Advantages of Aluminum Extrusion
Aluminum extrusion offers several key advantages that make it the preferred manufacturing method for many tube and rod applications.
1. High Production Efficiency
Extrusion allows continuous production with high material utilization, making it suitable for large-scale manufacturing and long-length products.
2. Design Flexibility
Extrusion supports a wide range of cross-sectional shapes, including complex hollow profiles that are difficult or impossible to achieve with other methods.
3. Broad Alloy Compatibility
Most common aluminum alloys—such as 6061, 6063, 7075, and 5052—can be extruded, providing flexibility in balancing strength, corrosion resistance, and machinability.
4. Good Mechanical Properties
Extruded products exhibit favorable grain flow along the length of the tube or rod, contributing to good strength and structural performance.
5. Cost-Effectiveness
Compared to machining solid material or producing seamless products through multi-step processes, extrusion offers a lower cost per unit for many applications.
Disadvantages of Aluminum Extrusion
Despite its advantages, extrusion is not without limitations.
1. Dimensional Tolerances
Extruded products generally have looser tolerances compared to drawn tubes or rods. Secondary processing may be required for precision applications.
2. Surface Finish Limitations
While extrusion provides acceptable surface quality for many uses, it may not meet the requirements of applications demanding ultra-smooth or cosmetic-grade finishes without additional finishing steps.
3. Tooling Cost for Custom Dies
Custom extrusion dies involve upfront tooling costs, which may not be economical for small production volumes.
4. Wall Thickness Constraints
Very thin walls or extreme diameter-to-thickness ratios can be challenging to achieve consistently through extrusion alone.
Conclusion
Aluminum tubes and aluminum rods can be produced using a variety of manufacturing methods, each offering different advantages in terms of performance, cost, and application suitability. Extrusion, drawing, rolling, welding, and casting all play important roles in aluminum product manufacturing.
Among these methods, aluminum extrusion remains the most versatile and widely used process for both tubes and rods. Its balance of efficiency, design flexibility, alloy compatibility, and cost-effectiveness makes it a cornerstone of modern aluminum manufacturing. However, understanding its limitations is equally important when selecting materials for high-precision or critical applications.
By choosing the appropriate production method based on performance requirements and application demands, manufacturers and engineers can fully leverage the advantages of aluminum tubes and rods in today‘’s industrial landscape.
